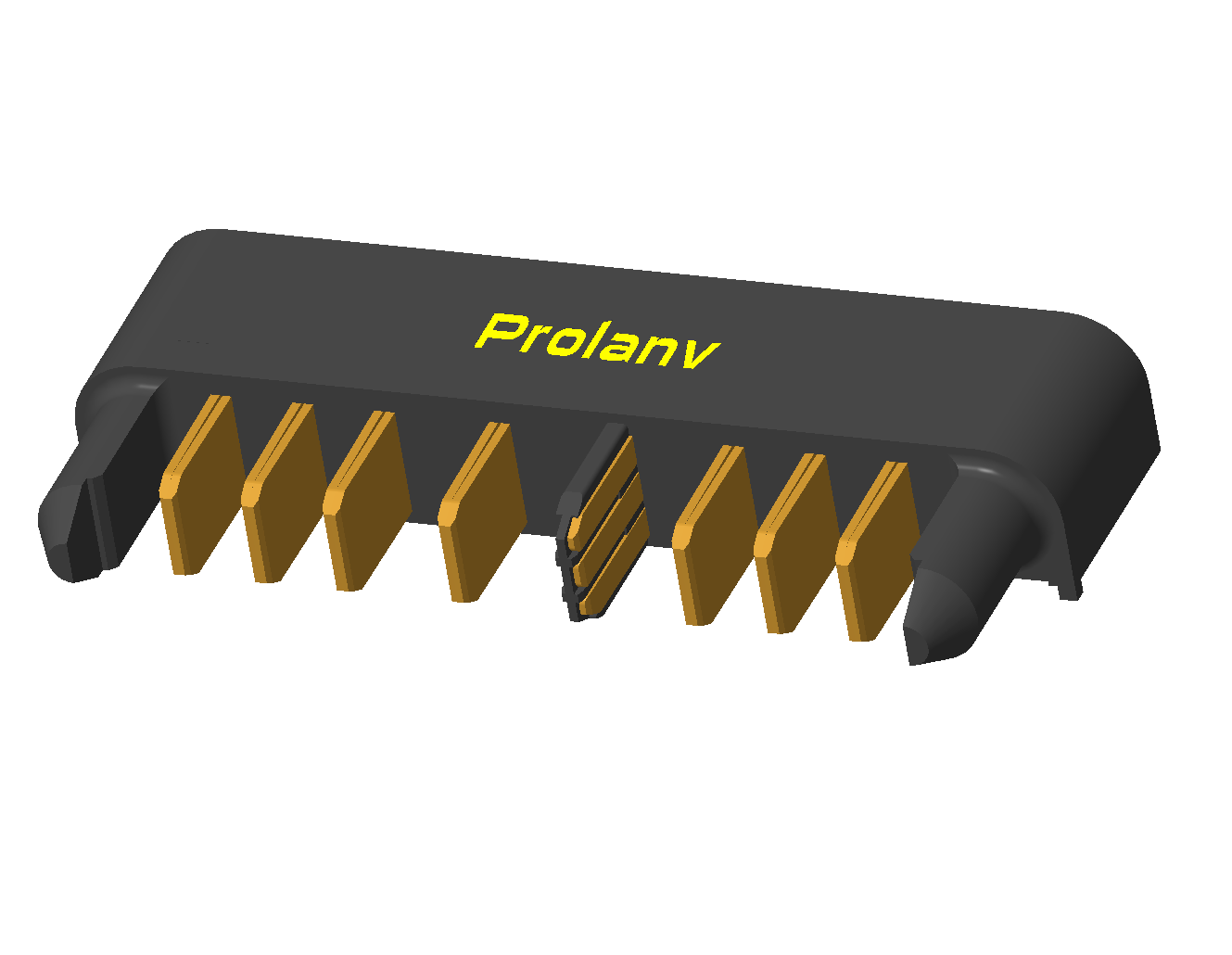

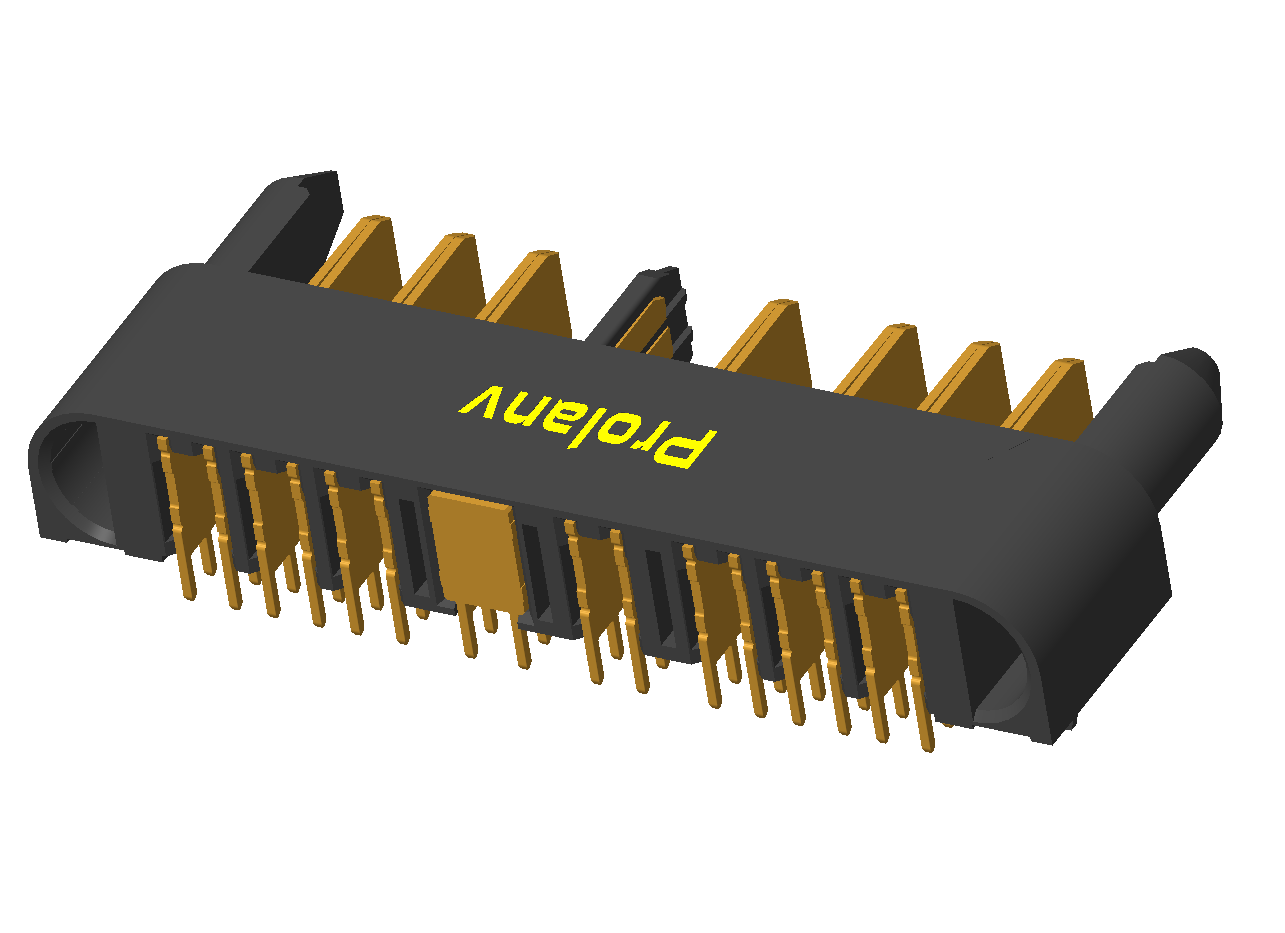

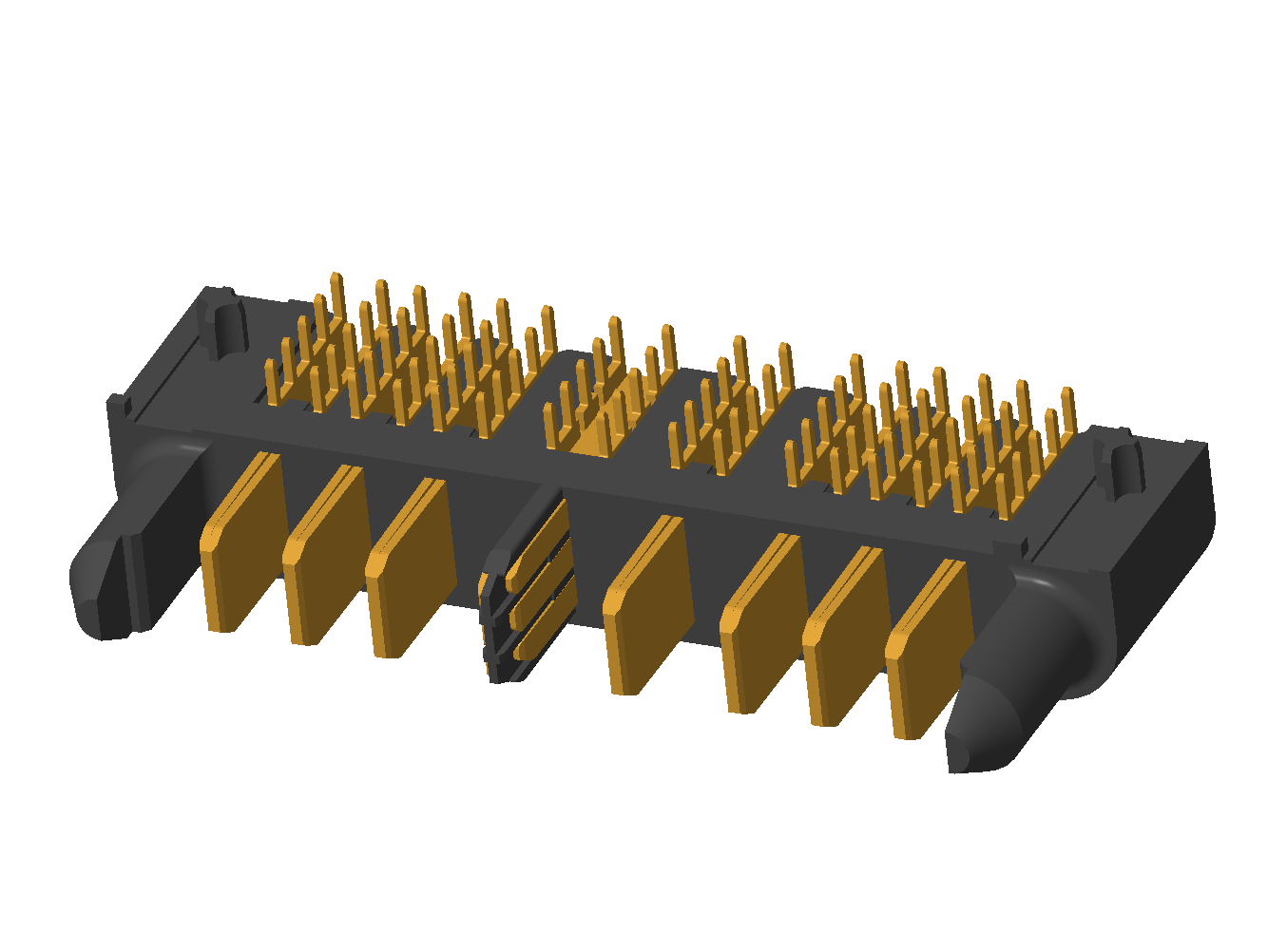

EN60A | 刀片式电源接口
2D_PDC2510F0002详细参数
专利产品 | Patented product
Notes:
1. Material Specification
1-1.Housing: High Temperature Thermoplastic, UL94 V-0,
1-2.Contact: High Conductivity Copper Alloy,
2. Plating Specification:
2-1.Contact: Gold plating.
3. Electrical performance
3-1.Voltage Rating: 250v DC/power pin, 120v DC/signal pin.
3-2.Current Rating: 60A (per power blade).
3-3.LLCR: initial 0.6mΩ max., finished 1.0mΩ max.(per power blade )
3-4.Dielectric Withstanding Voltage: 1500v DC rms/power blade; 500v DC rms/signal pin,
3-5.Insulation Resistance: 5000 MΩ min/power blade; 500 MΩ min/signal pin;
4. Mechanical Performance:
4-1.Insertion force: 120N (12.2 kgf) (max.)
4-2.Withdrawal force: 9.8N~98N (1.0~10.0 kgf).
4-3.Durability life: 10,000 cycles.
5. IR Reflow:
The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~125°c(without loss function).
7. All parts RoHS and Reach compliant.
