AW40 | 机臂快拆模组
详细参数

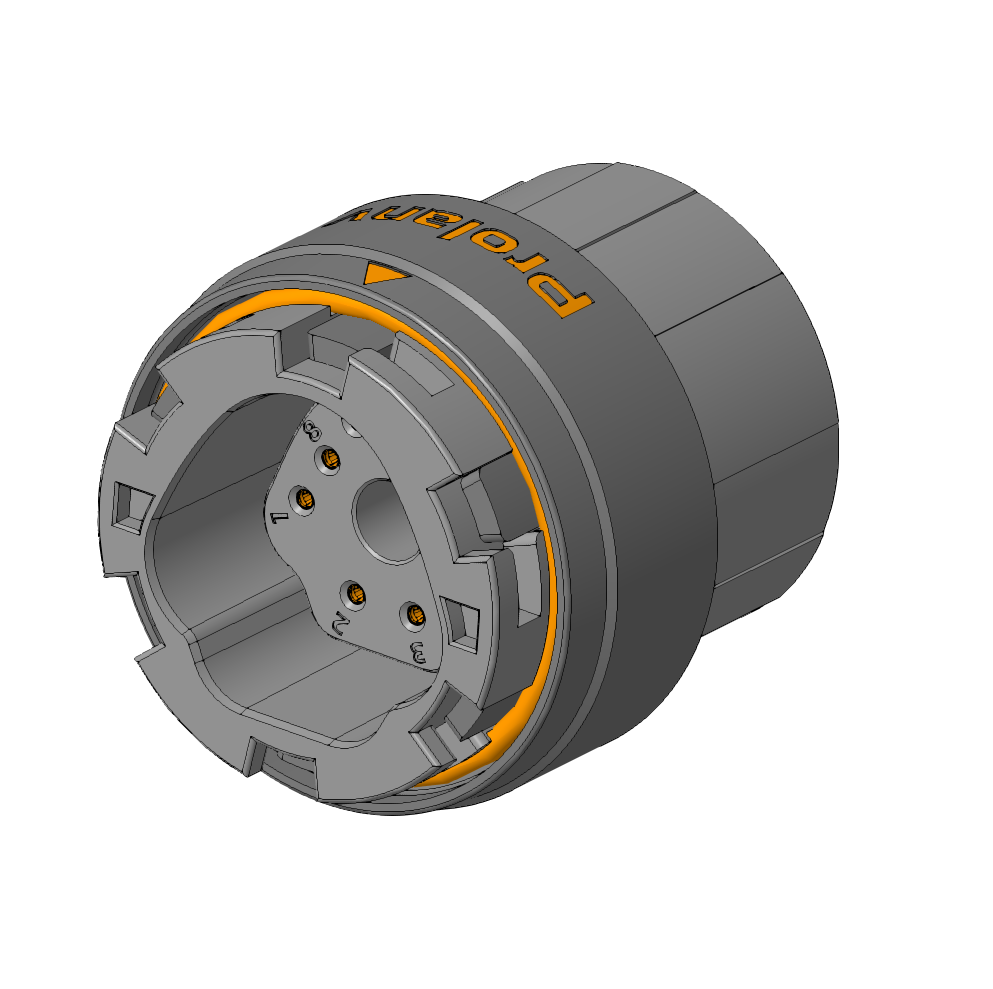

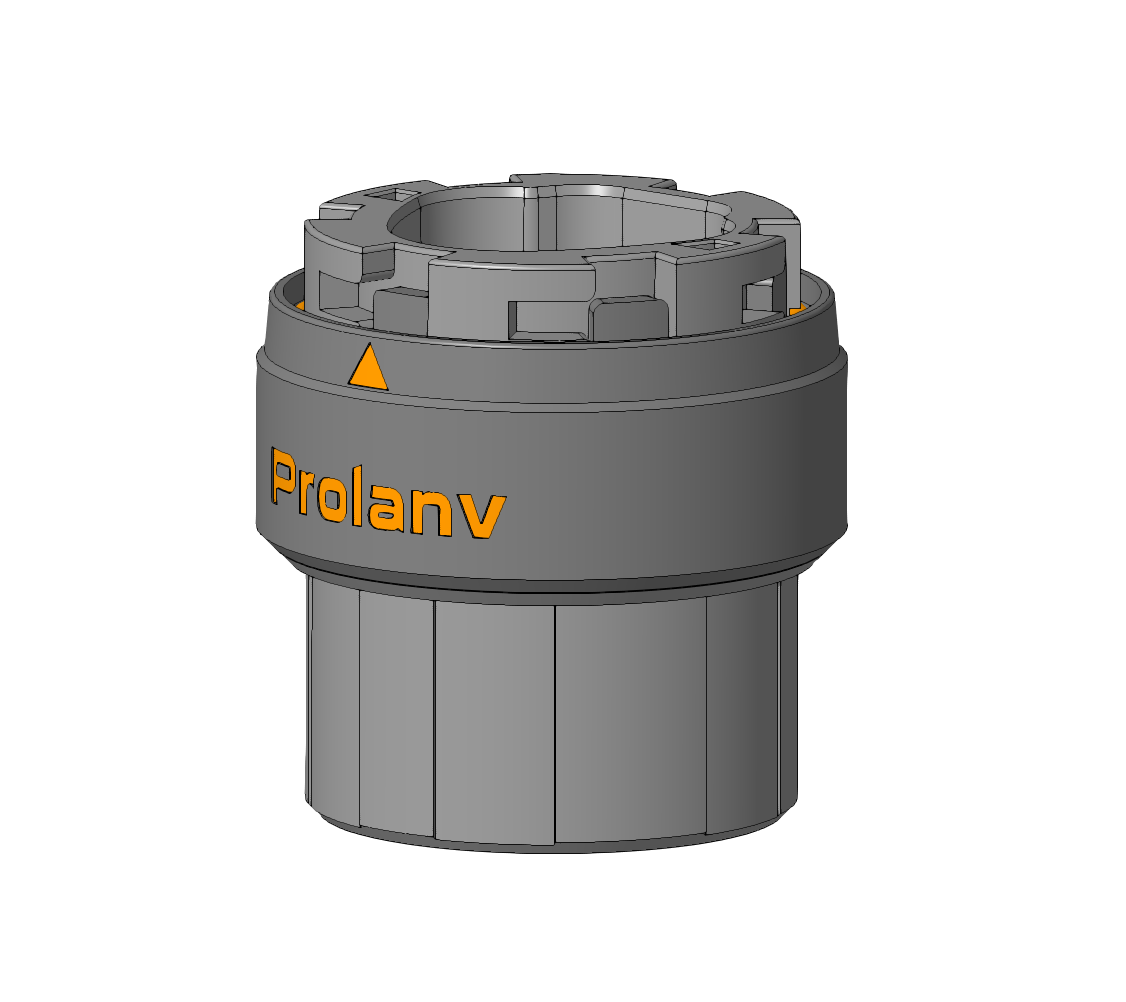

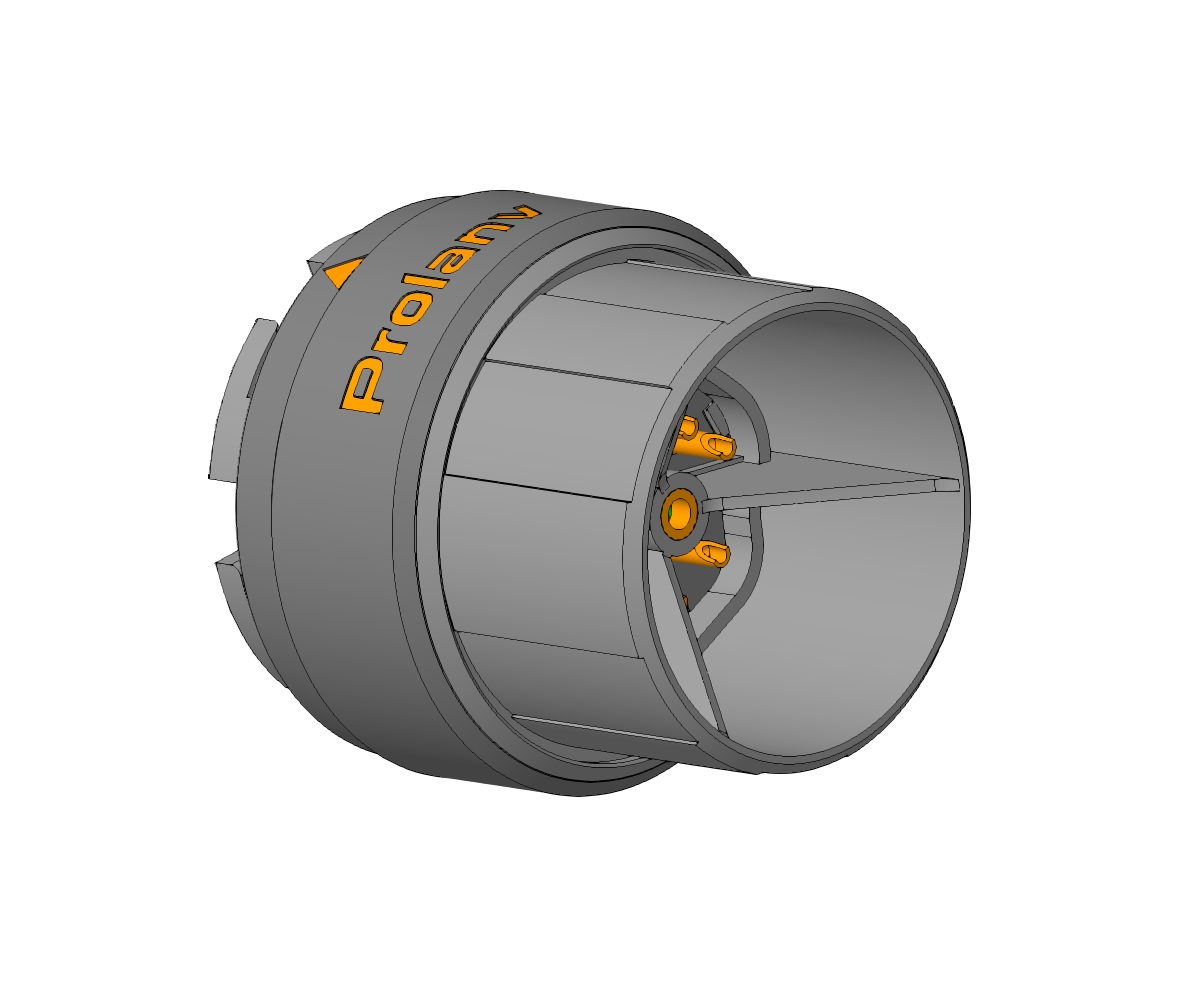

AW40 arm module Patented product | Patent
专利族 | 快拆 | 浮动抗振 | 防水 | 耐久 | 自锁定
Quick Fit | Anti-Vibration | Water-Proof | Auto-locking
 电压 Voltage rating  250VDC max.
 电流 Current rating  35A/Per Pin
 接触阻抗 Contact resistance    1.2mΩ max. Initial
 耐久 Durability Life  5,000 cycles max.
 水平过载力 Over-loading   23.5kgf max.
 水平过载力 Over-loading   26.5kgf max. (with Fiexed collar)
 颜色识别 FAE Tips  Color control (RD or WH)
 防水等级 Waterproof grade  IPX5
 工作温度 Working Temps  -40°C~125°C.
 应用领域 Application Field  arm module机臂模组
