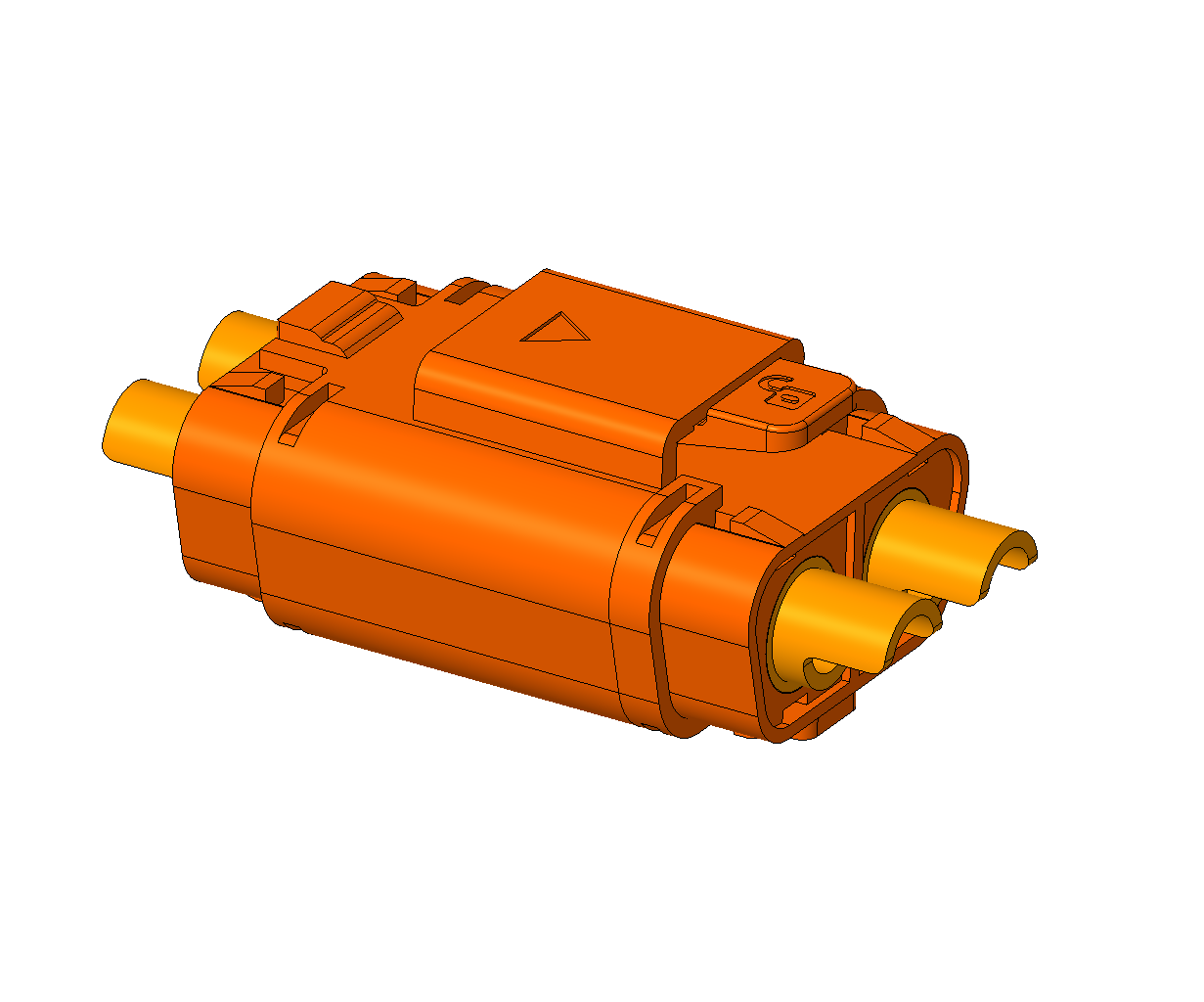

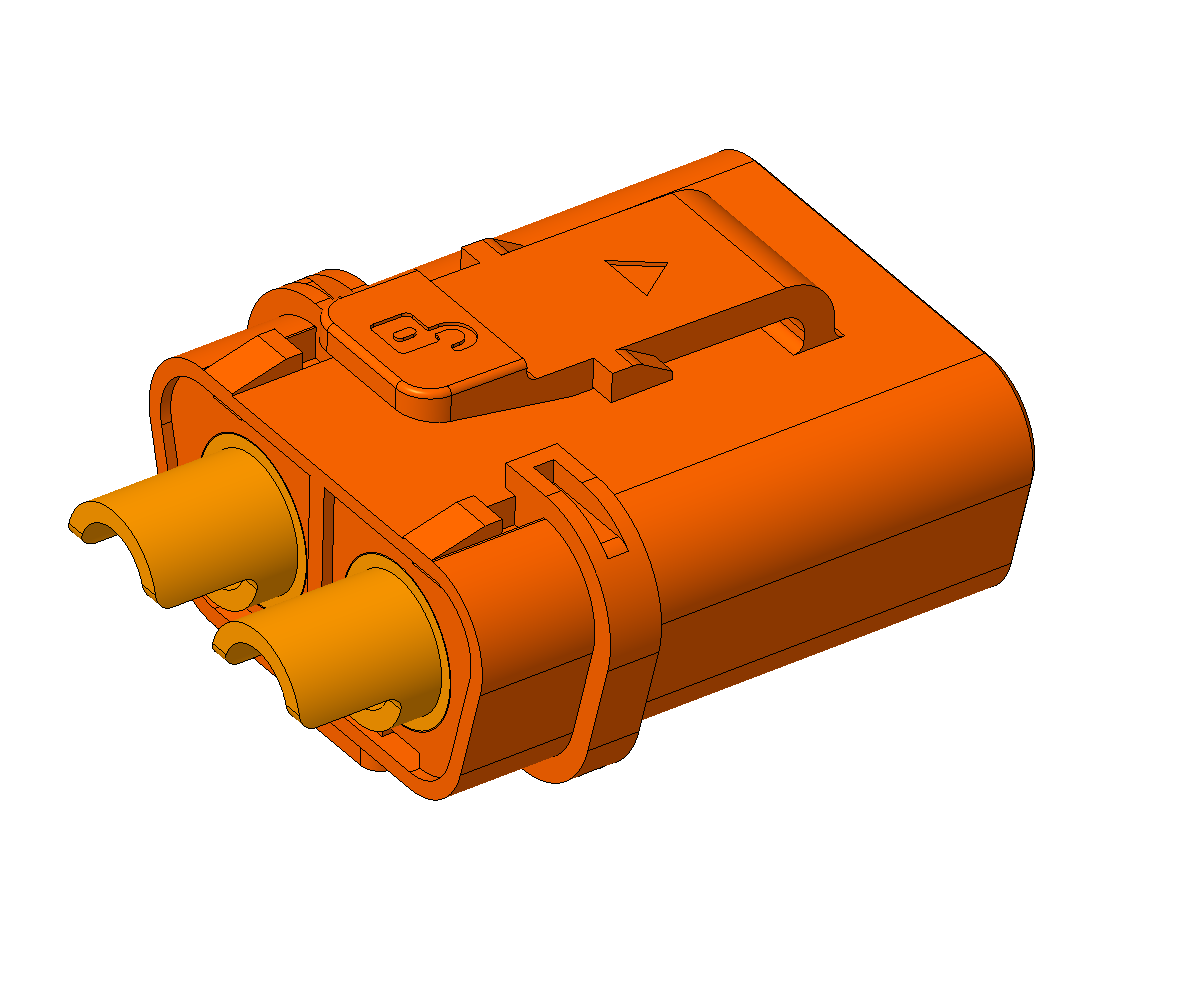

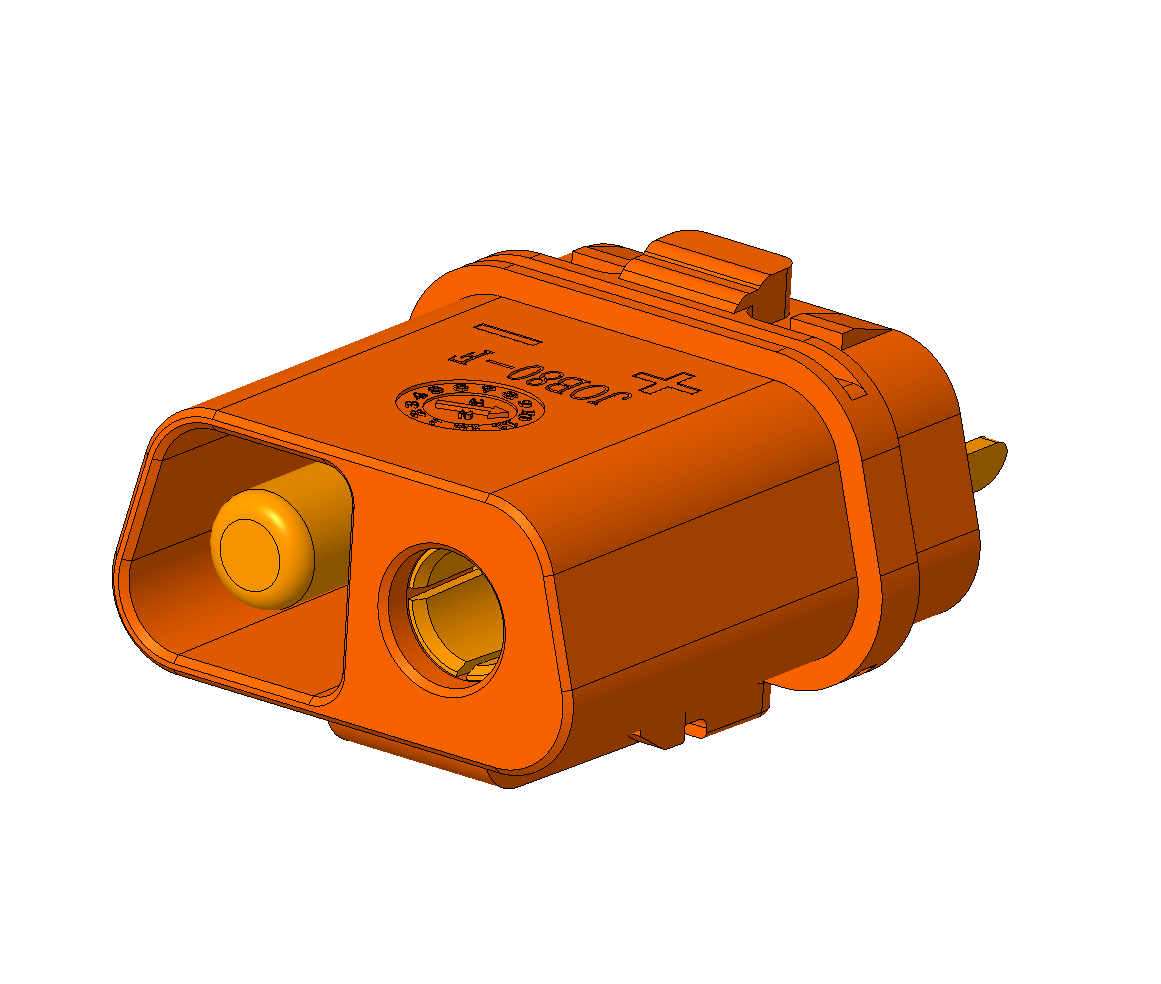

AT80 | 针式电源连接器

专利产品 | Patented product
防火花Anti-spark | 抑制涌流 Inhibit inrush current

1. Material Specification
  1-1.Housing: High Temperature Thermoplastic. UL94 V-0.
  1-2.Contact: High Conductivity Copper Alloy.
  1-3. Screw & Nut: Copper Alloy.
2. Plating Specification: Contact: Gold plating overall.
3. Electrical performance
  3-1. Voltage Rating: 200V DC max.
  3-2. Current Rating: 80A max @ per pin.
  3-3. LLCR: 0.80mΩ max (initial); 1.80 mΩ max (final).
  3-4. Dielectric Withstanding Voltage: 1500v DC rms/Power Pin.
  3-5. Insulation Resistance: 5000 MΩ min/Power Pin.
4. Mechanical Performance:
  4-1. Insertion force: 24.5N (2.5kgf) max @ per pair.
  4-2. Withdrawal force: 6N (0.6kgf) min @ per pair.
  4-3. Durability life: 2,000 cycles max.
5. Operating Temperature Range: -25~+125°c.
6. All parts RoHS and Reach compliant.
