EN60A | 刀片式电源 (升级版)
2D_PDC0110F0003详细参数

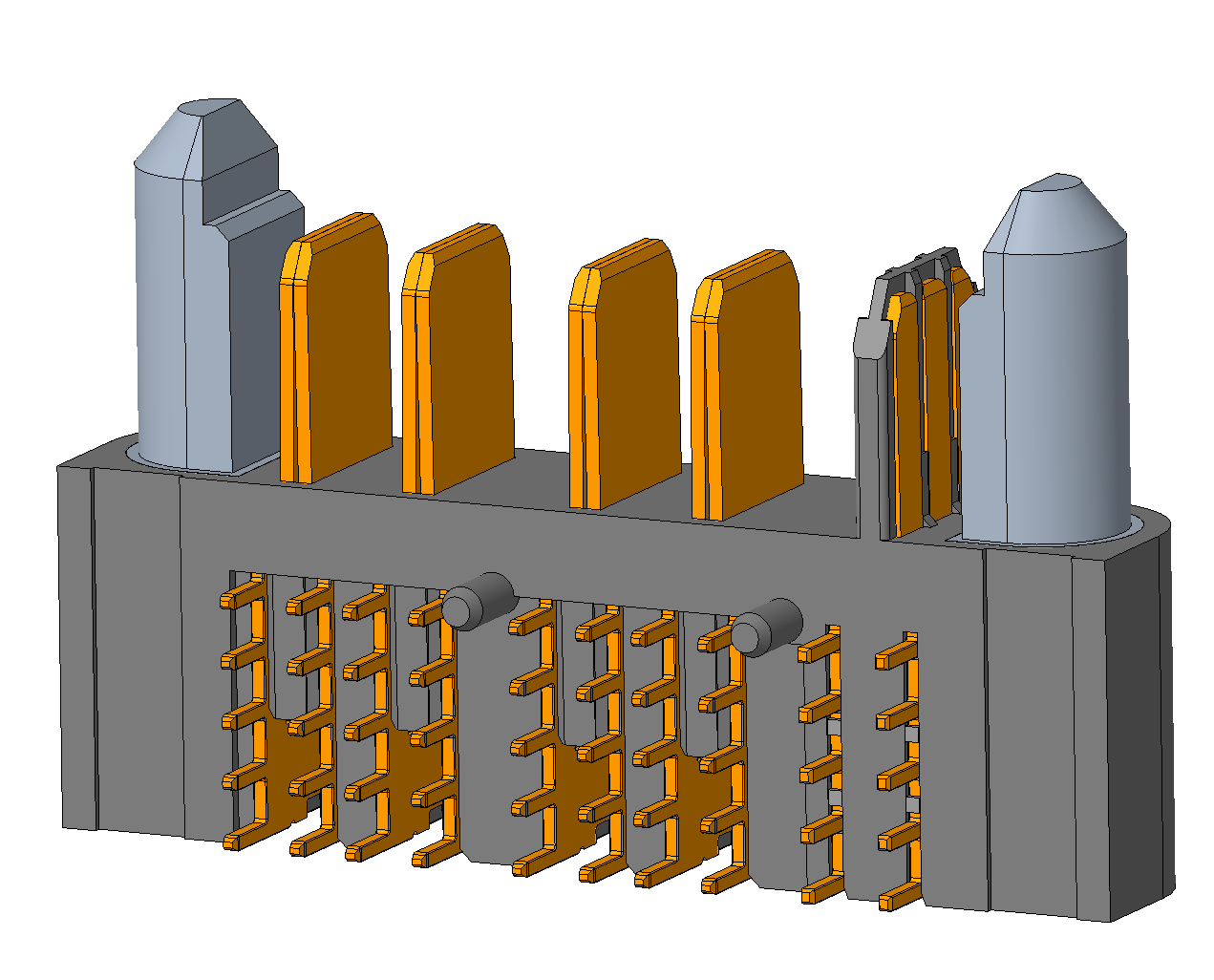

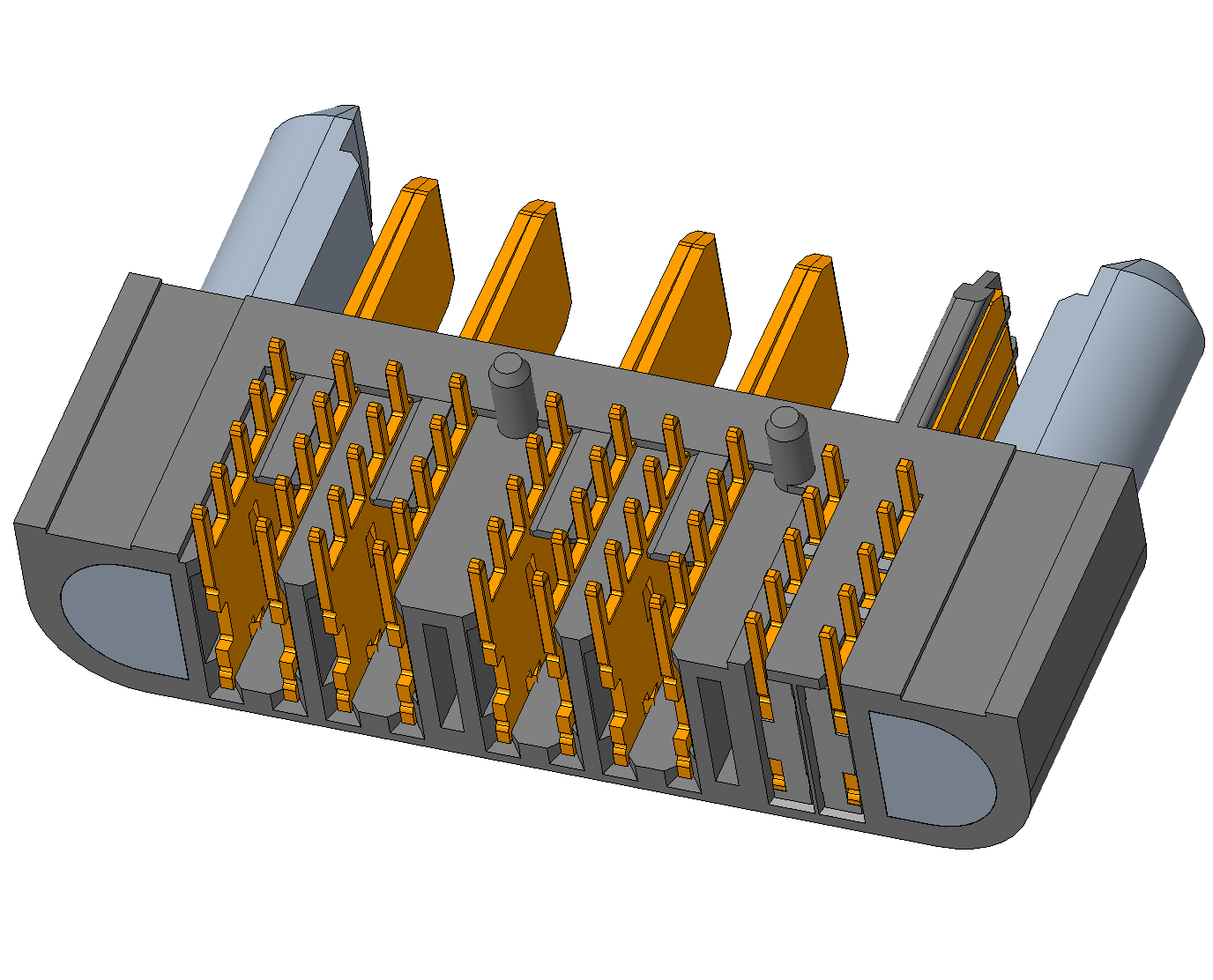

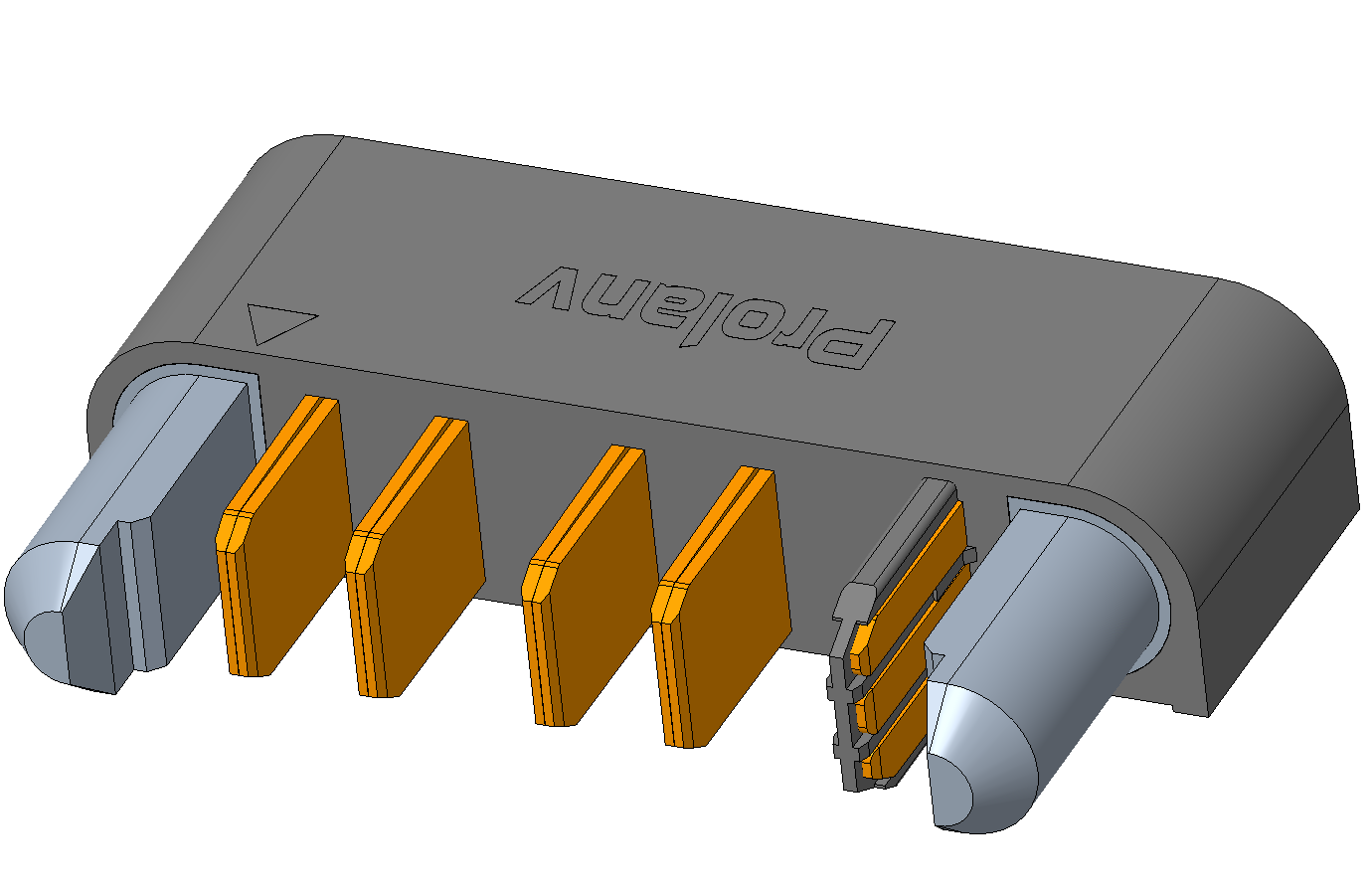

| EN60A Power Male 4PW+6S R/A Type | Patent EN60A 刀片电源公座 4组电源+6个信号 折弯式 | 专利结构 |
|
| 电压Voltage rating | 250VDC max. |
| 电流Current rating | 60A/Per Power Pair |
| 接触阻抗Contact resistance | 0.6mΩ max. Initial |
| 耐久Durability Life | 10,000 cycles max. |
| 适用压接工艺Press Fit | N/A |
| 应用提示 FAE Tips | +2PW/-2PW 140A max. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | UAV/Robot/IE...... |
