EN60A | Blade Power Conn
2D_PDC3010F0001Description

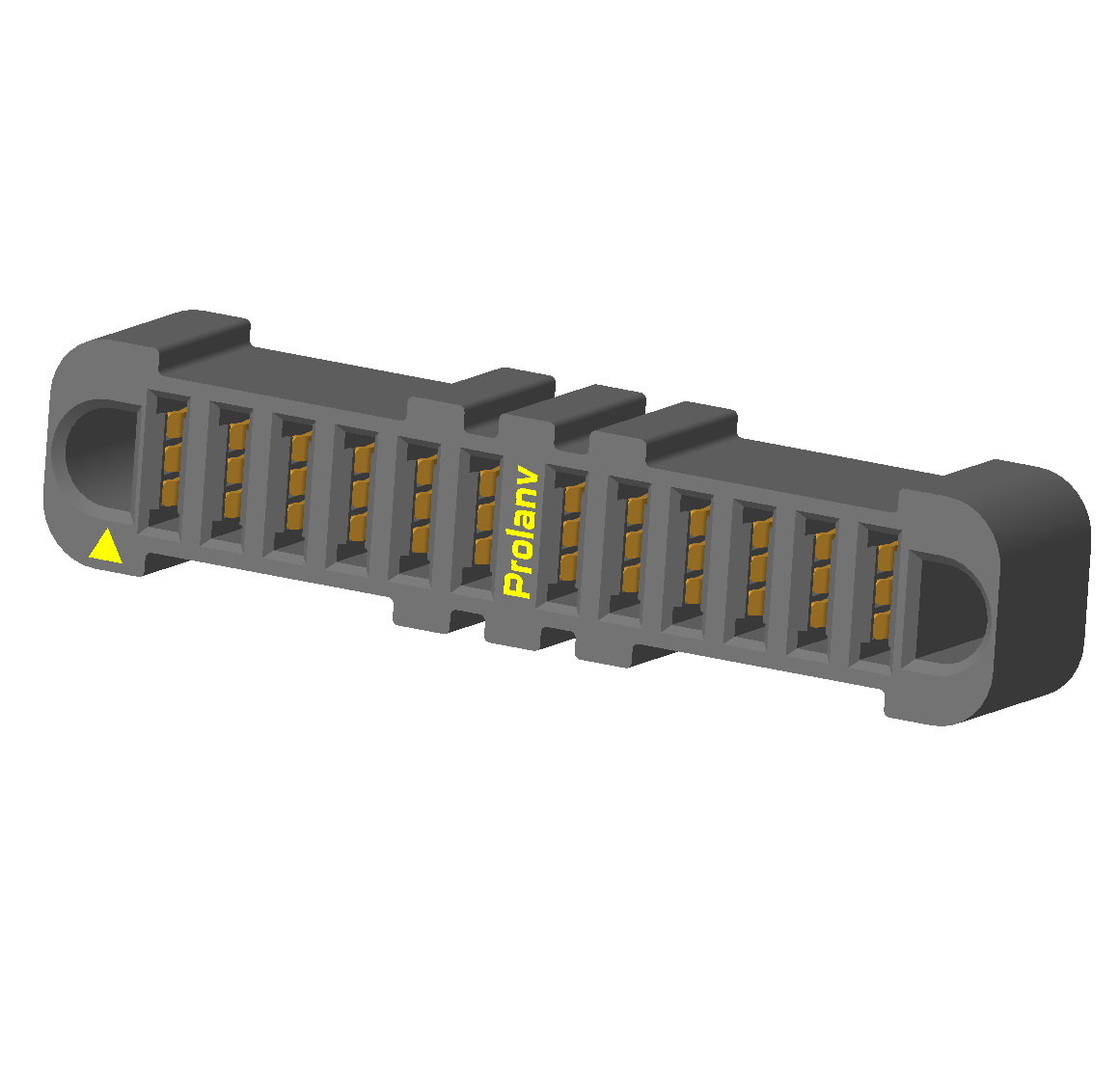

| EN60A Power Female 12PW Straight Type | Patent EN60A 刀片电源母座 12组电源 直立式 | 专利结构 |
|
| 电压Voltage rating | 250VDC max. |
| 电流Current rating | 60A/Per Power Pair |
| 接触阻抗Contact resistance | 0.6mΩ max. Initial |
| 耐久Durability Life | 10,000 cycles max. |
| 适用压接工艺Press Fit | Yes |
| 应用提示 FAE Tips | +6PW/-6PW 360A max. |
| 工作温度Working Temps | -40°C~125°C. |
| 应用领域Application Field | UAV/Robot/IE...... |
