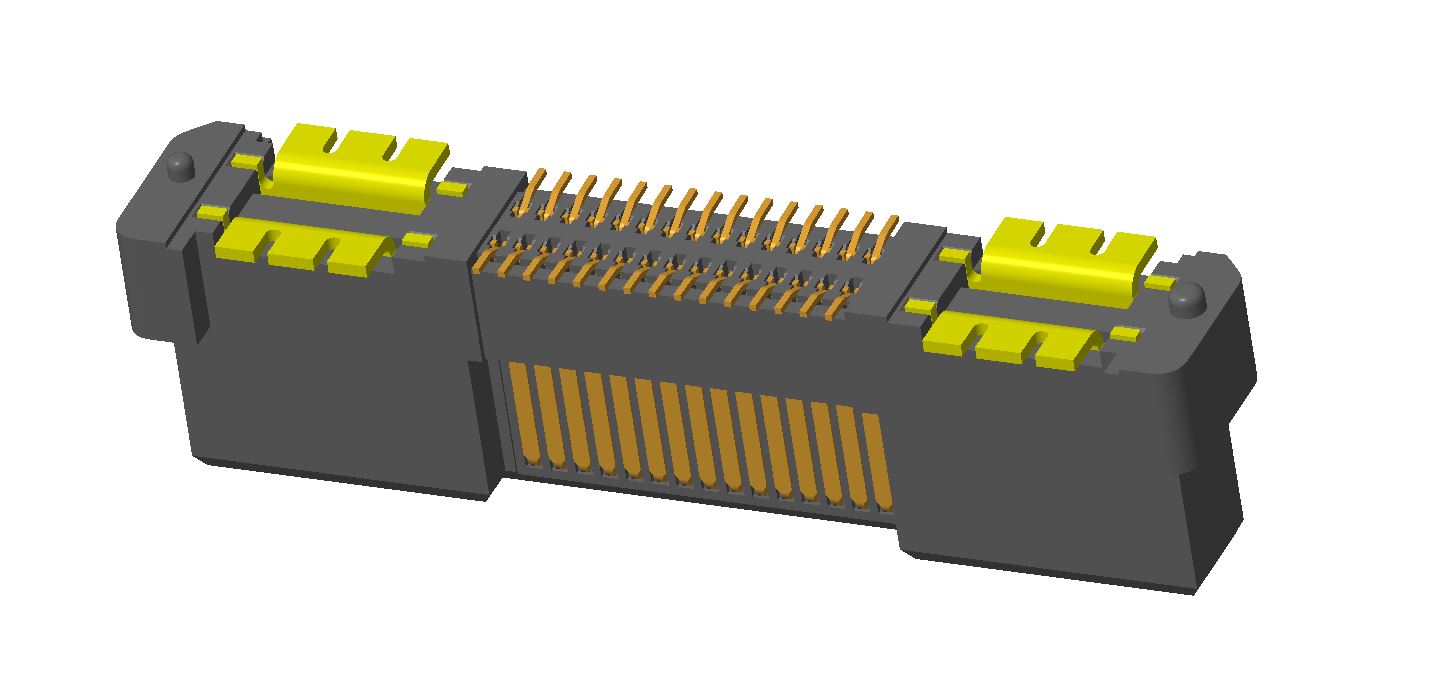

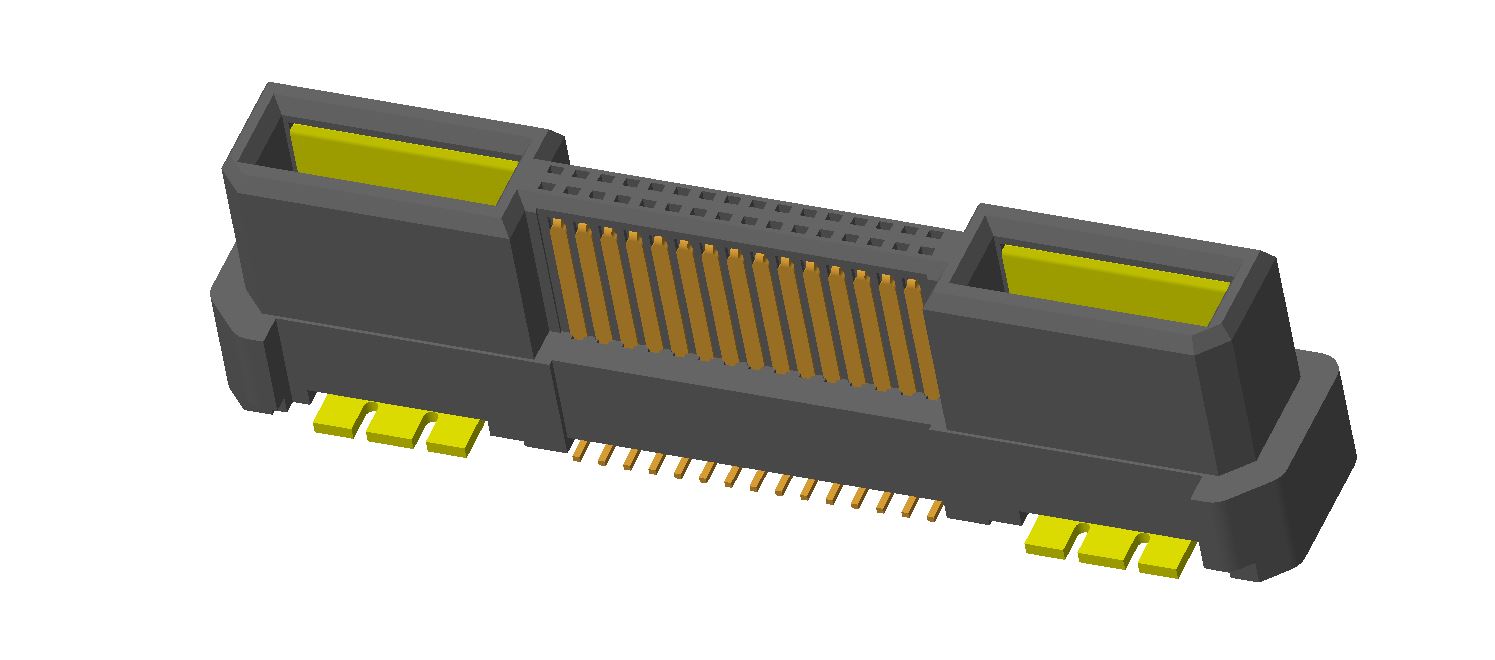

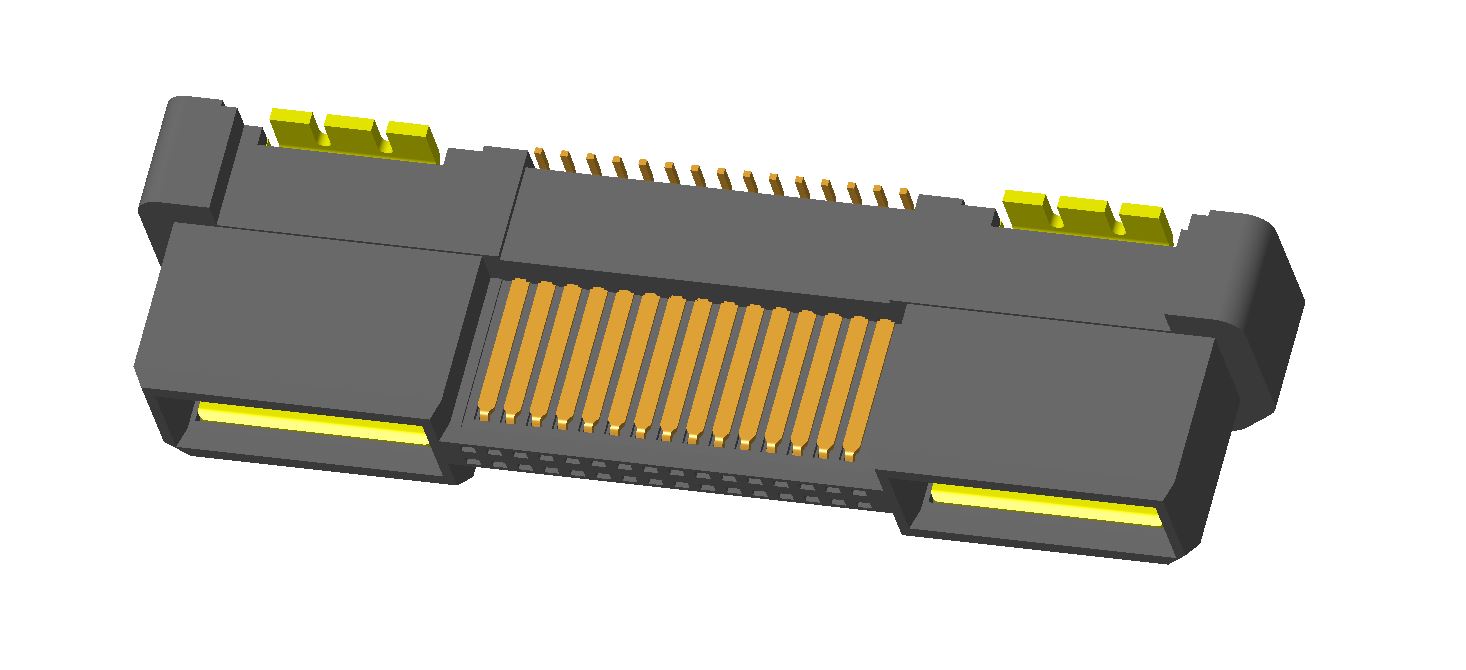

BTB Style Power Conn.
Document download
 1. Material:
  1-1.Housing: High temperature thermoplastic, UL94 V-0,
  1-2.Power Pin: High Conductivity Copper Alloy,
  1-3.Signal Pin: Copper Alloy.
 2. Plating Specification:
  2-1.Power Pin/Signal Pin: Nickel 50μ'' min. under plated, Gold plating on the functional area of contact, Matte Tin on Tails,
 3. Electrical Performance:
  3-1.Current rating (Power Pin): 40A/Per Pair,
  3-2.Current rating (Signal Pin): 0.5A/Per Pin,
  3-3.LLCR (Power Pin): 1.0mΩ max.(initial), 2.0mΩ max.(final),
  3-4.LLCR (Signal Pin): 55mΩ max.(initial), 20mΩ max.change allowed (final),
3-5.Dielectric Withstanding Voltage: 300V AC (RMS) for 60s.,
  3-6.Insulation Resistance: 500MΩ min. @ 500V DC;
4. Mechanical Performance:
  4-1.Insertion force: 49.8N (5.0kgf) max.
  4-2.Withdrawal force: 4.9~49.8N (0.5~5.0kgf).
  4-3.Durability: 1,000 cycles min.
4. IR Reflow:
  The peak temperature on board shall be maintained for 10 seconds at 260±5°C.
5. Operating temperature range: -35°C~105°C(without loss function).
6. All part RoHS and Reach compliant.
