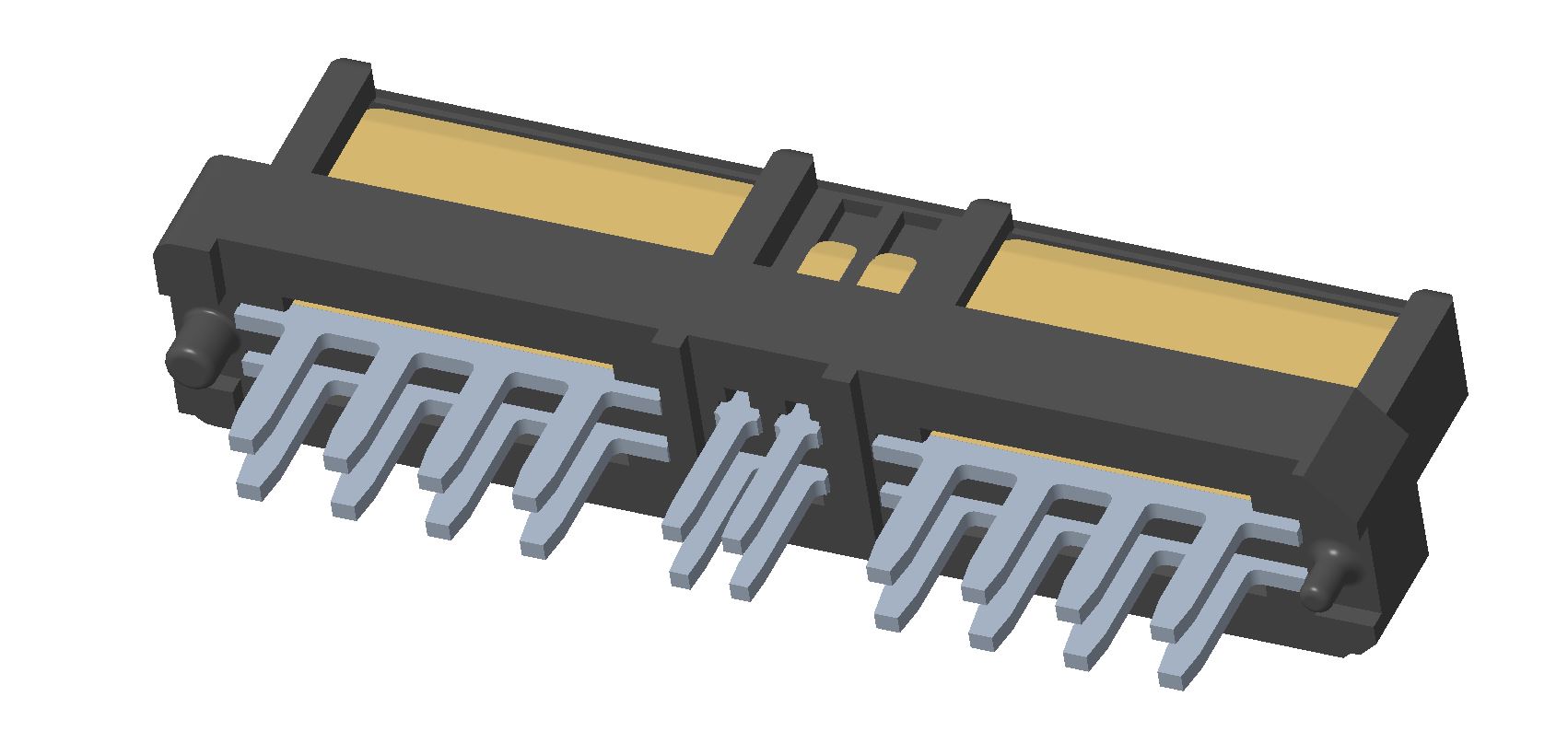

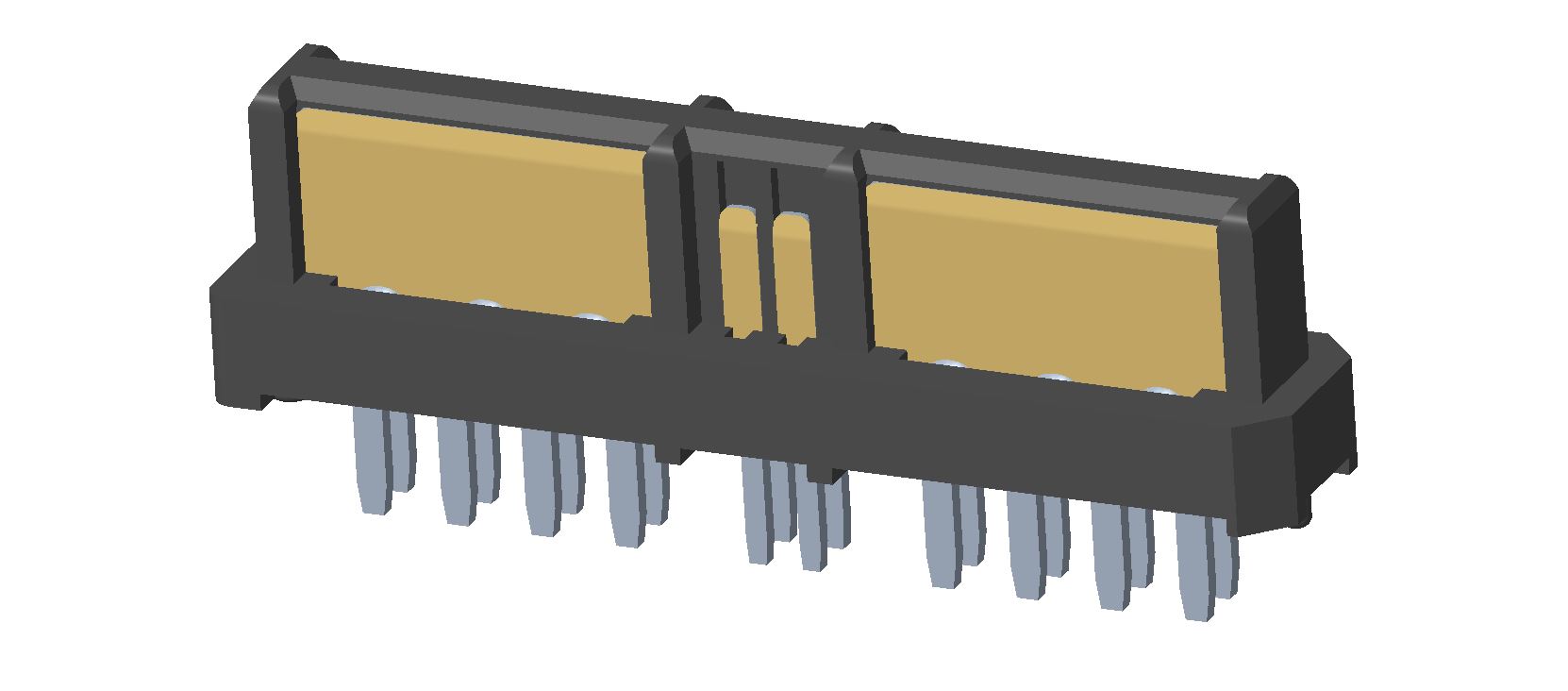

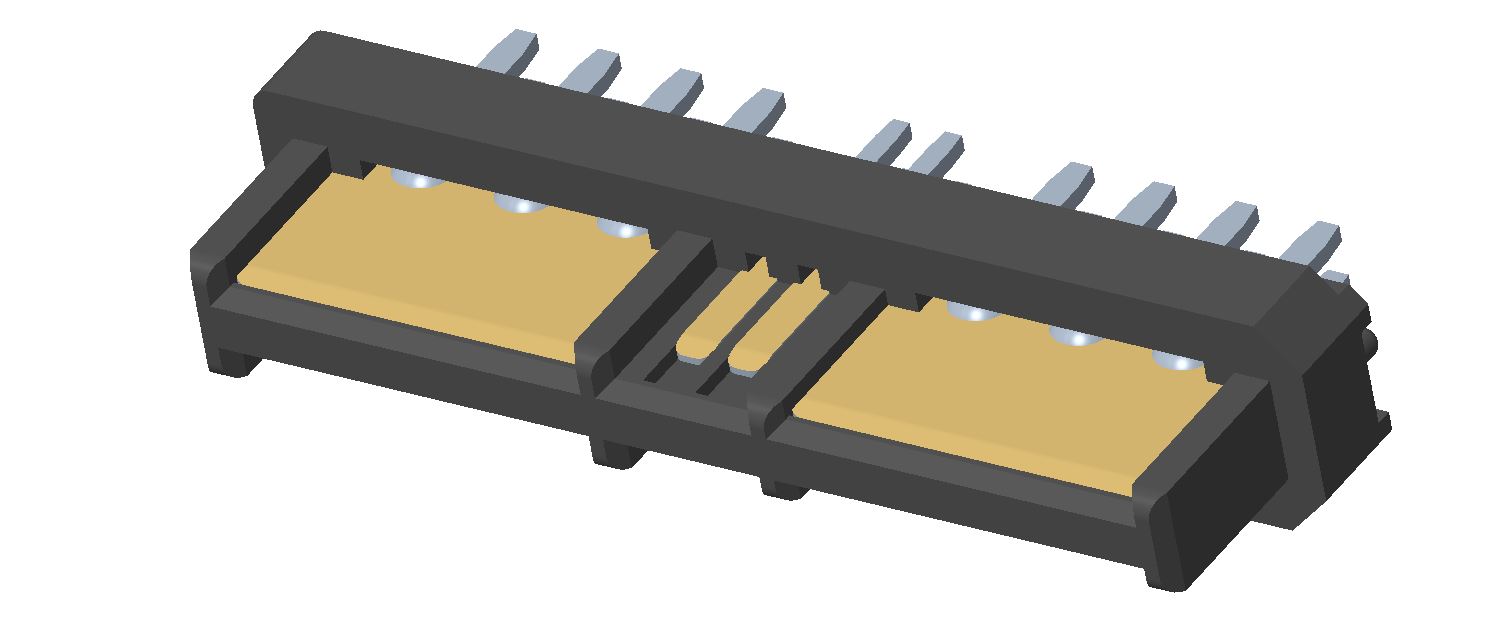

BTB Style Power Conn.
Document download
Description
Note:
 1. Material:
  1-1.Housing: High temperature thermoplastic, UL94 V-0,
  1-2.Power Pin: High Conductivity Copper Alloy,
  1-3.Signal Pin: Copper Alloy.
 2. Plating Specification:
  2-1.Power Pin/Signal Pin: Nickel 50μ'' min. under plated, Gold plating on the functional area of contact, Matte Tin on Tails,
 3. Electrical Performance:
  3-1.Current rating (Power Pin): 50A/Per Pair,
  3-2.Current rating (Signal Pin): 1A/Per Pin,
  3-3.LLCR (Power Pin): 0.5mΩ max.(initial), 1mΩ max.(final),
  3-4.LLCR (Signal Pin): 20mΩ max.(initial), 30mΩ max.(final),
  3-5.Dielectric Withstanding Voltage: 500V AC (RMS) for 60s.,
  3-6.Insulation Resistance: 500MΩ min. @ 500V DC;
4. IR Reflow:
  The peak temperature on board shall be maintained for 10 seconds at 260±5°C.
5. Operating temperature range: -35°C~105°C(without loss function).
6. All part RoHS and Reach compliant.
