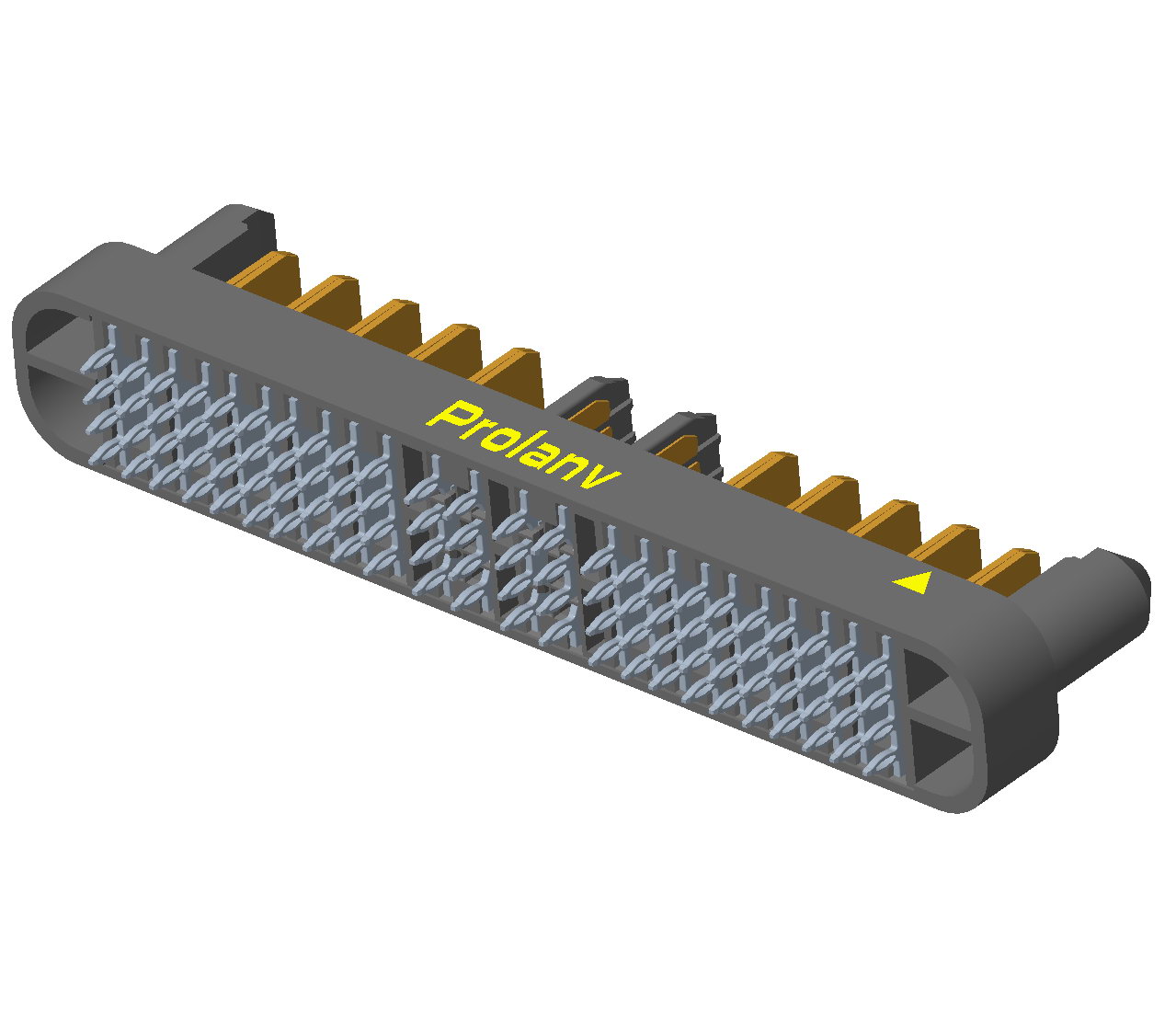

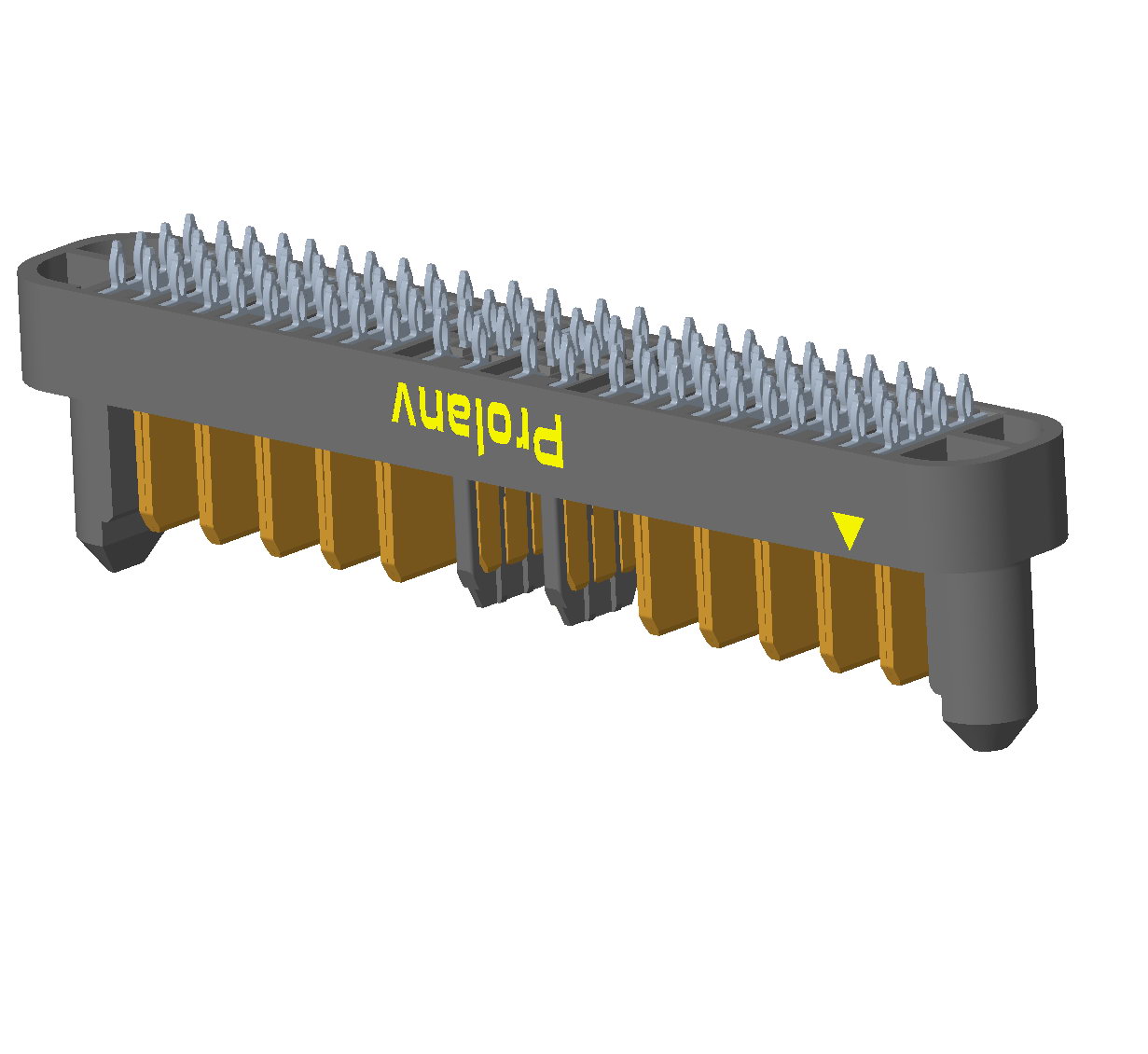

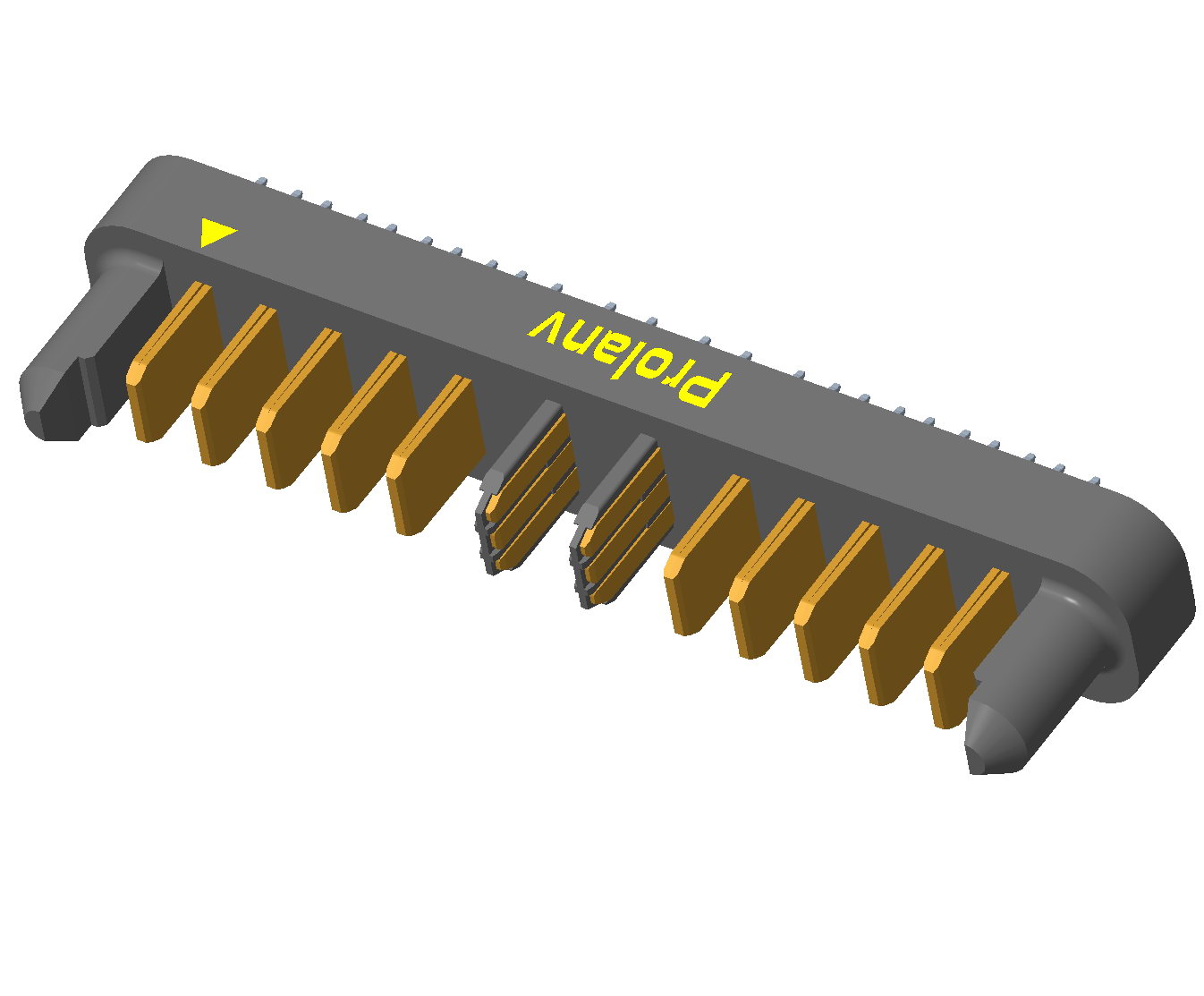

EN60A | Blade Power Conn
2D_PDC2110F0001Description
Notes:
1. Material Specification
1-1.Housing: High Temperature Thermoplastic, UL94 V-0, Black.
1-2.Contact: High Conductivity Copper Alloy.
2. Plating Specification:
2-1.Contact: Gold plating.
3. Electrical performance
3-1.Voltage Rating: 250v DC/Power Pin, 120v DC/Signal Pin.
3-2.Current Rating: 60A/per Power Blade, 3A/Signal Pin.
3-3.LLCR: initial 0.6mΩ max., finished 1.0mΩ max.(per Power Blade ) , initial 10mΩ max., finished 20mΩ max.(per Signal Pin)
3-4.Dielectric Withstanding Voltage: 1500v DC rms/Power Blade; 500v DC rms/Signal Pin,
3-5.Insulation Resistance: 5000 MΩ min/power blade; 500 MΩ min/signal pin;
4. Mechanical Performance:
4-1.Insertion force: 245N (25.0 kgf) (max.)
4-2.Withdrawal force: 9.8N~147N (1.0~15.0 kgf).
4-3.Durability life: 10,000 cycles max.
5. IR Reflow:
The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~125°c(without loss function).
7. All parts RoHS and Reach compliant.
8. See SPS-PDC-06 for Terminal details.
