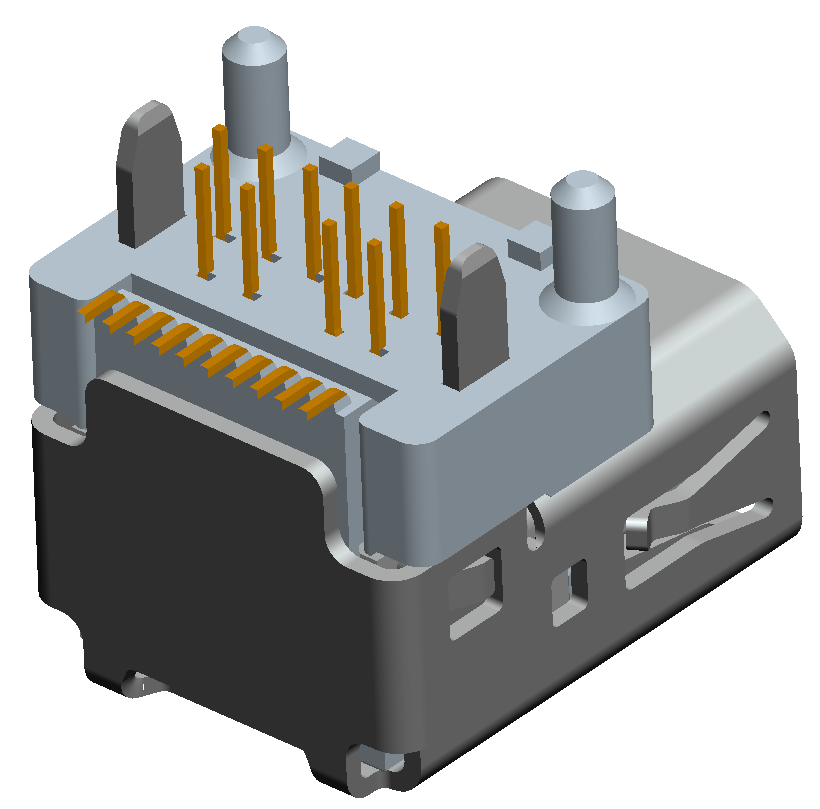

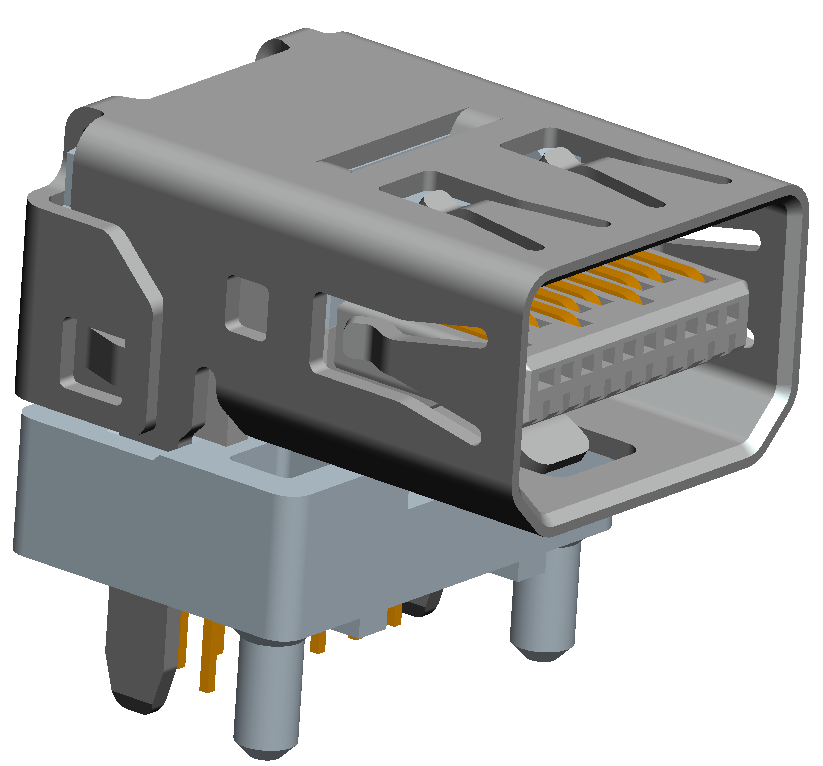

CE I/O Connectors
Description
Notes:
1.Material Specification:
 1-1.Housing: LCP+30% G.F UL94 V-0 Black.
 1-2.Contact: Copper Allot (C2680) T=0.20mm.
 1-3.Shell: Stainless Steel (SUS304) T=0.40mm.
2.Plating Specification:
 2-1.Contact: see P/N.
 2-2.Shell: Nickel plated..
3.Mechanical Performance:
 3-1.Insertion force: 44.1N (4.5kgf) max.
 3-2.Withdrawal force: 9.8N~39.2(1.0~4.0kgf).
 3-3.Durability: 5,000 cycles.
4.Electrical Performance:
 4-1.Current rating: 0.5A.
 4-2.LLCR: Contact: 30mΩ max.(initial), Shell: 50mΩ max(initial).
 4-3.Insulation Resistance:
     A:unmated: 100MΩ min. at 500V DC.
     B:mated: 10MΩ min. at 150V DC.
4-4.Dielectric withstand voltage:
     150V AC/60s(mated), 250V AC/60s(unmated).
5.IR Reflow:
 The peak temperature on board shall be maintained for 10 seconds at   260±5°C.
6.Operating temperature range: -35°C~105°C(without loss function).
7.All parts RoHS and Reach compliant.
