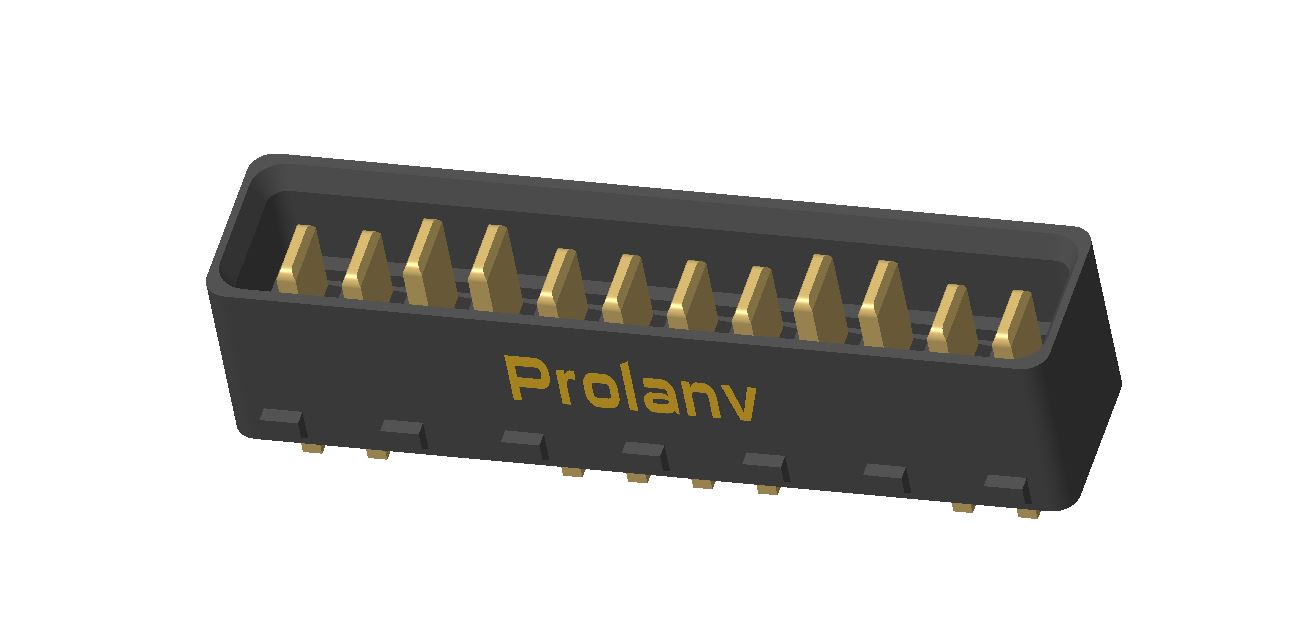

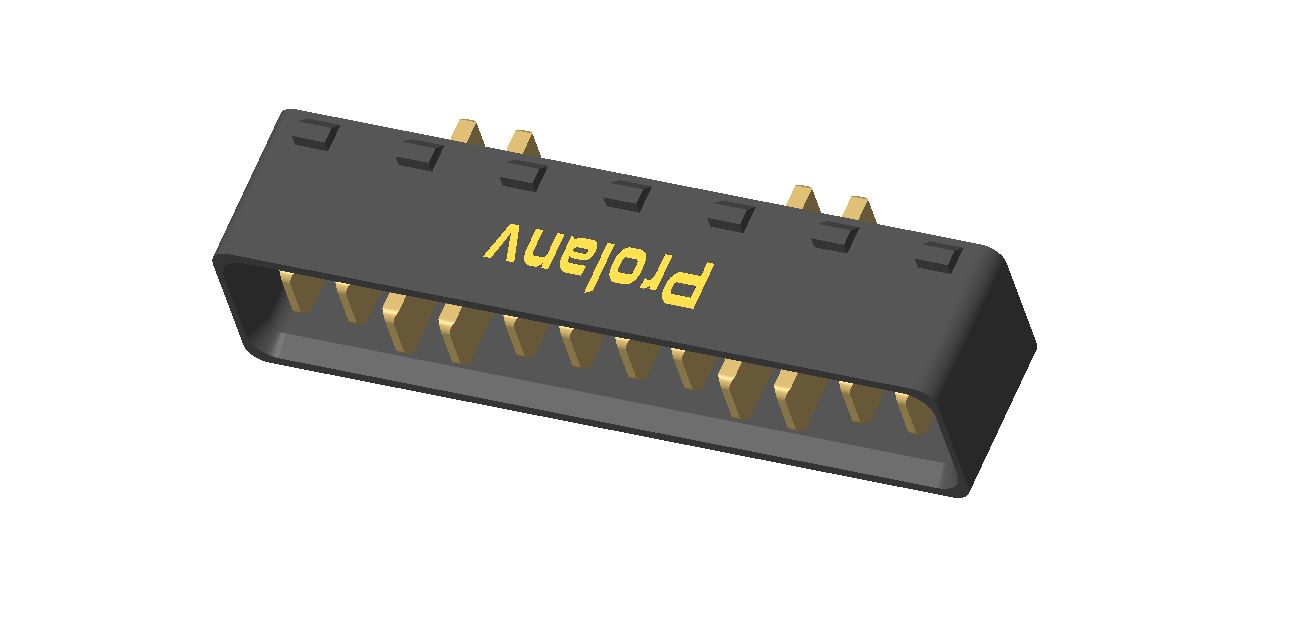

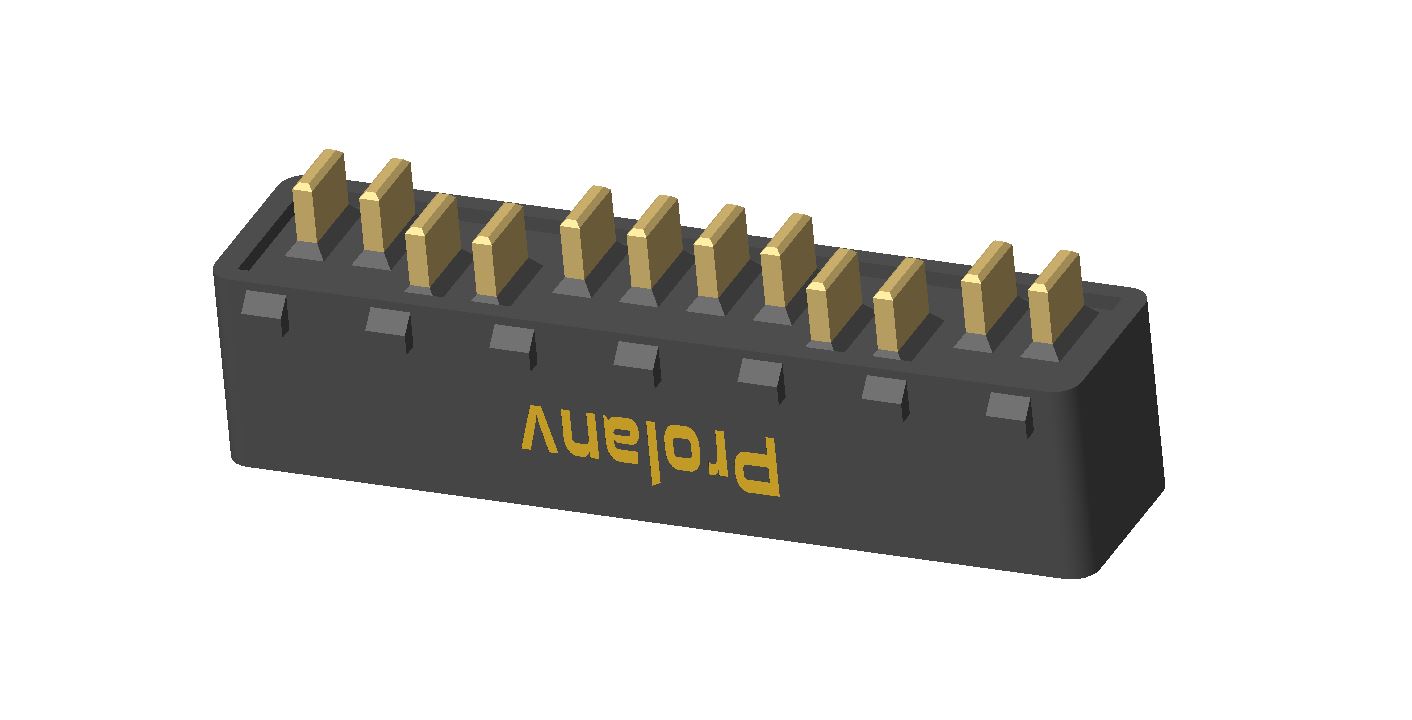

Mini Blade Power Conn.
Document download
Description
Notes:
1. Material Specification
  1-1.Housing: High Temperature Thermoplastic. UL94 V-0,
  1-2.Contact: High Conductivity Copper Alloy,
2. Plating Specification:
  2-1.Contact: Gold Plating overall.
3. Electrical performance
  3-1.Voltage Rating: 50V DC/per pin.
  3-2.Current Rating: 20A /per pin.
  3-3.LLCR: 1.0mΩ max.(initial).
  3-4.Dielectric Withstanding Voltage: 500V AC (RMS) for 60S.
  3-5.Insulation Resistance: 1000 MΩ min./500V DC.
4. Mechanical Performance:
  4-1.Insertion force: 88N (9.0 kgf) (max.)
  4-2.Withdrawal force: 9.8N~88N (1.0~9.0 kgf).
  4-3.Durability life: 1000 cycles.
5. IR Reflow:
    The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~105°c(without loss function).
7. All parts RoHS and Reach compliant.
