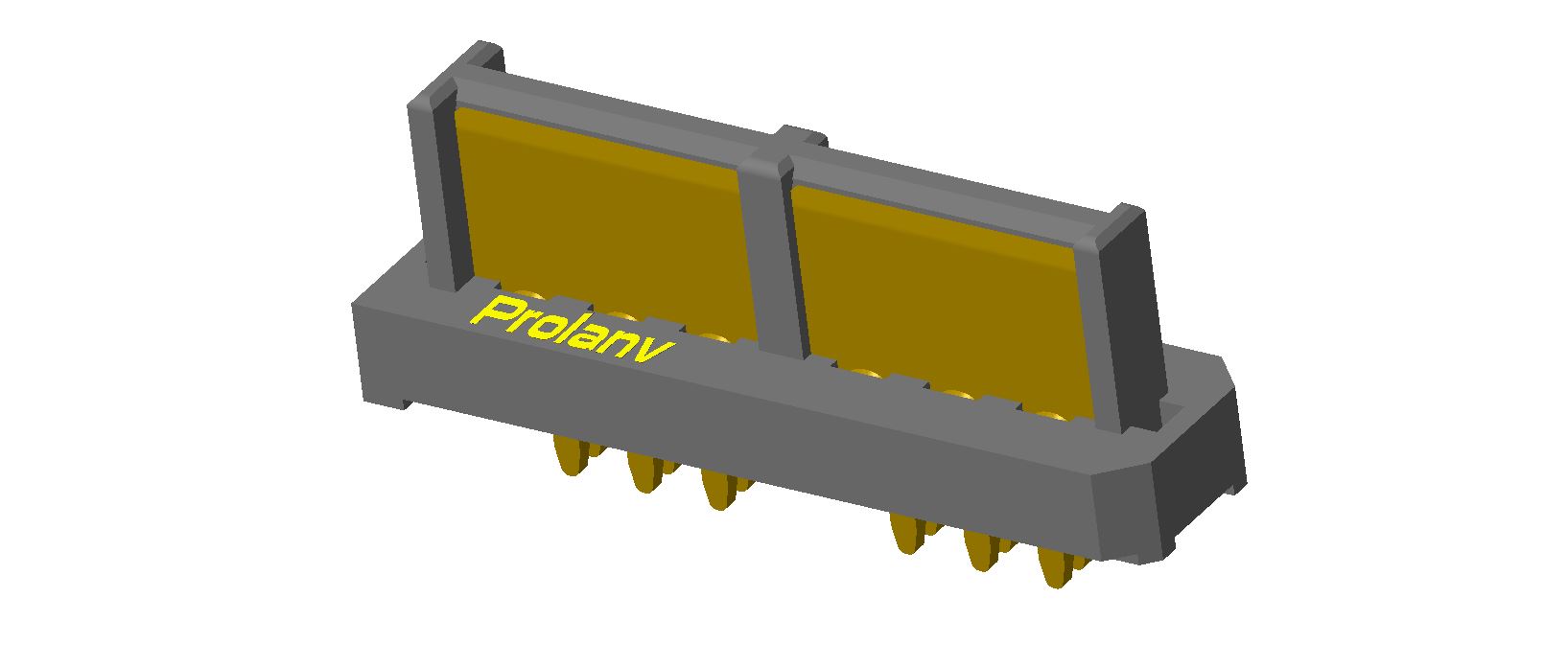

BTB Style Power Conn.
Document download
1. Material Specification
  1-1.Housing: High Temperature Thermoplastic. UL94 V-0, Black.
  1-2.Contact: High Conductivity Copper Alloy.
2. Plating Specification:
  2-1.Contact: Au3μ"  plating on Contact area, matte Tin 80μ" min. on Tails,  and 50μ" min, Nickel overall.
3. Electrical performance
  3-1.Voltage Rating: 50v DC/Power Pin.
  3-2.Current Rating: 40A/Per Power Pin.
  3-3.LLCR: initial 0.5mΩ max., finished 1.0mΩ max.( Power Pin ).
  3-4.Dielectric Withstanding Voltage: 500v DC rms/Power Pin.
  3-5.Insulation Resistance: 500 MΩ min at 500v DC.
4. Mechanical Performance:
  4-1.Insertion force: 35N (3.6kgf) (max.)
  4-2.Withdrawal force: 4.9N~35N (0.5~3.6 kgf).
  4-3.Durability life: 5,000 cycles (max.)
5. IR Reflow:
    The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -35~105°c(without loss function).
7. All parts RoHS and Reach compliant.
