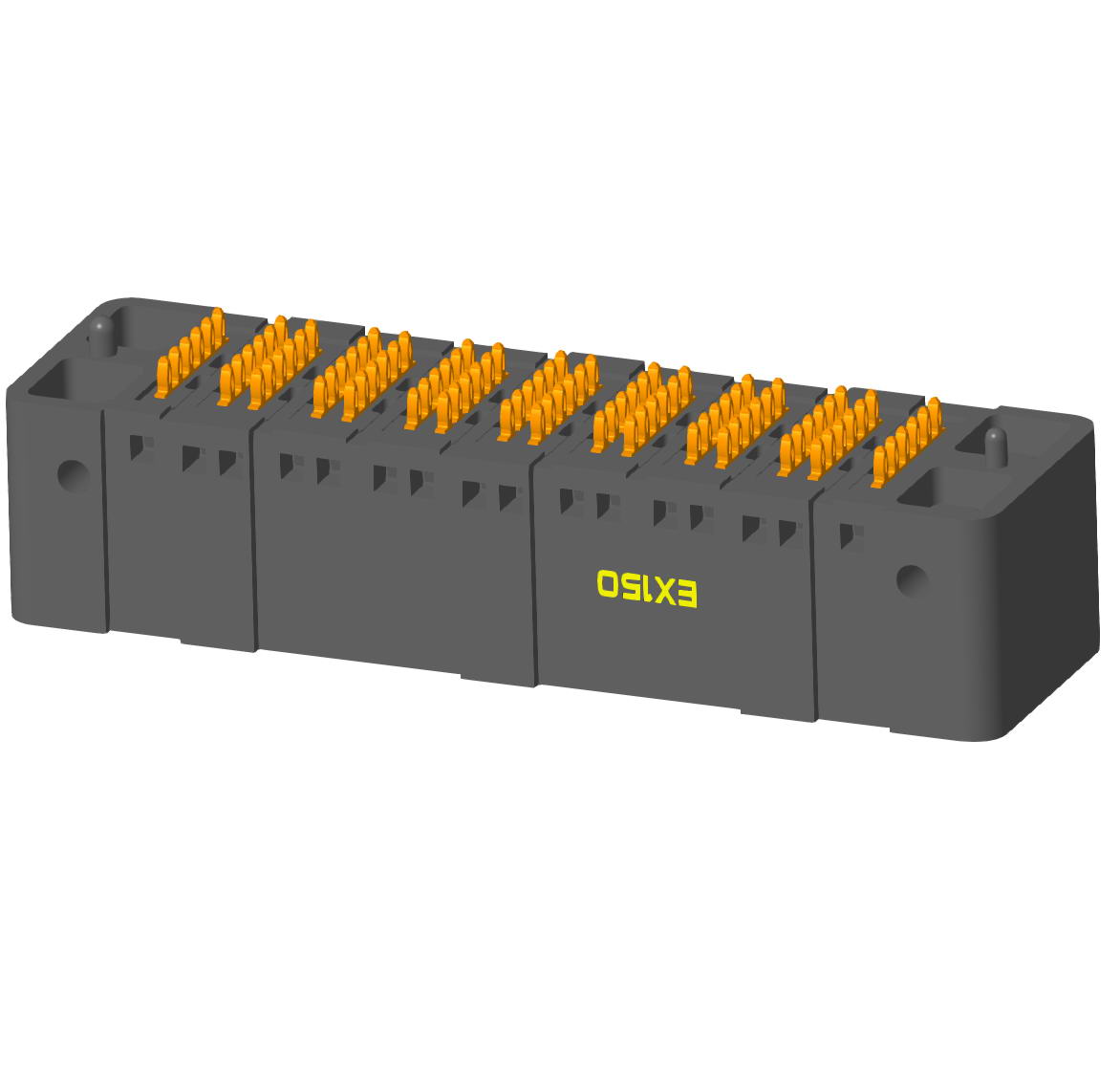

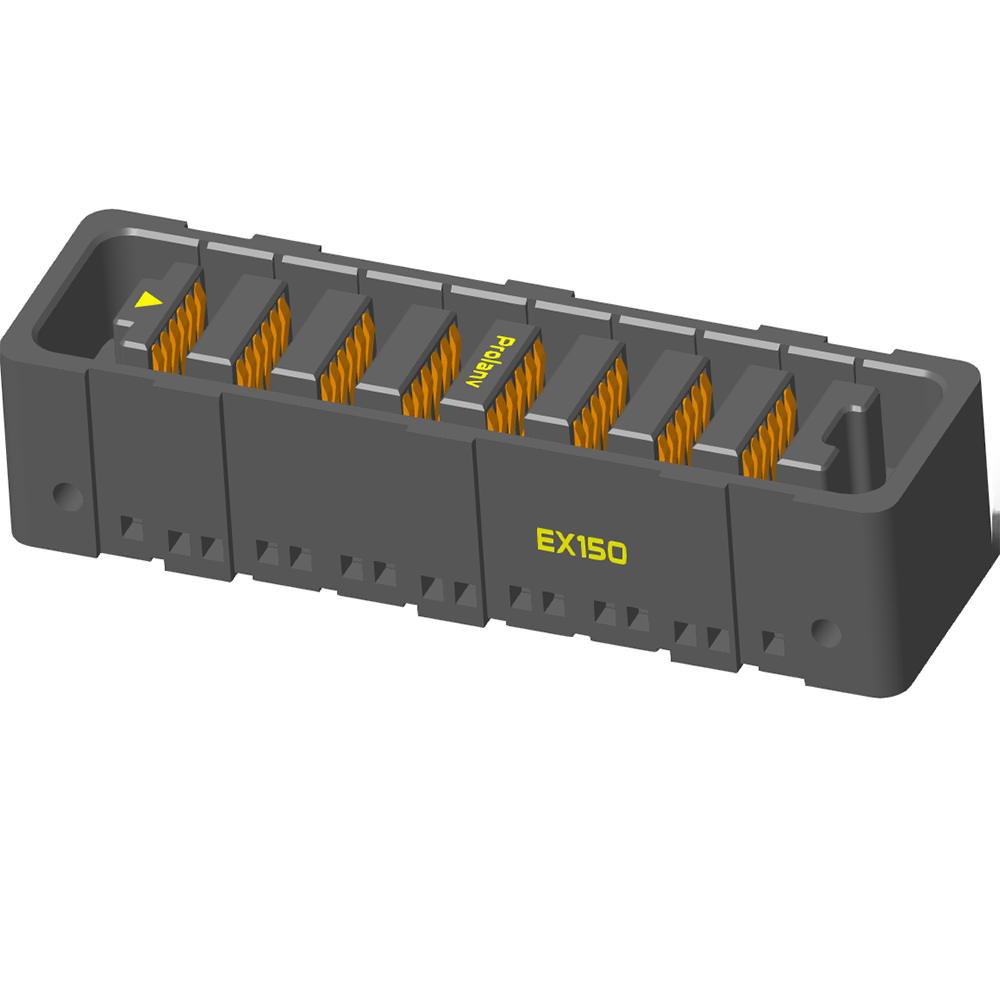

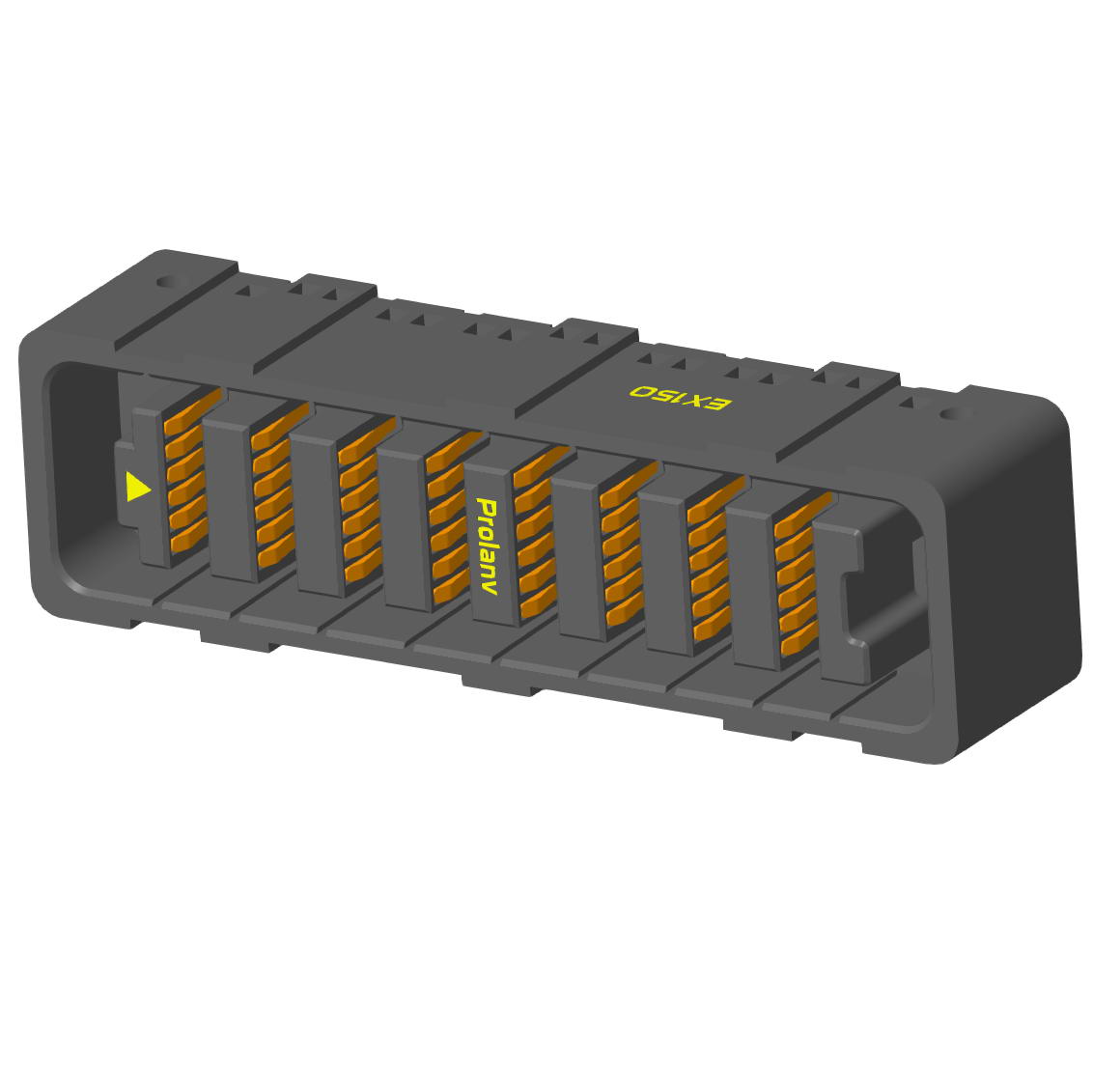

EX150 | Blade Power Conn
2D_PDC3810F0001Description
A Revolutionary Patent Family
(Water-Proof and New-cooling structure）
Notes:
1. Material Specification
1-1.Housing: High Temperature Thermoplastic. UL94 V-0, Black.
1-2.Contact: High Conductivity Copper Alloy.
2. Plating Specification:
2-1.Contact: Au30μ" plating on Contact area, matte Tin 80μ" min. on Tails, and 50μ" min, Nickel overall.
3. Electrical performance
3-1.Voltage Rating: 600v DC/250v AC/Power Blade, 120v AC/DC/Signal Pin.
3-2.Current Rating: 150A Max./per Power Blade, 7.5A Max./per Signal Pin.
3-3.LLCR: initial 0.5mΩ max., finished 1.0mΩ max.(per Power Blade ),
initial 10mΩ max., finished 20mΩ max.(per Signal Pin ).
3-4.Dielectric Withstanding Voltage: 2000v DC rms/Power Blade, 500v DC rms/Signal Pin.
3-5.Insulation Resistance: 5000 MΩ min/Power Blade.
4. Mechanical Performance:
4-1.Insertion force: 39.2N (4.0kgf)/Per Pair max.
4-2.Withdrawal force: 4.9N~34.3N (0.5~3.5kgf)/Per pair.
4-3.Durability life: 5,000 cycles.
5. IR Reflow:
The peak temperature on board shall be maintained for 10 seconds at 260±5°c.
6. Operating Temperature Range: -40~125°c(without loss function).
7. All parts RoHS and Reach compliant.
