EX150 | Blade Power Conn
Document download

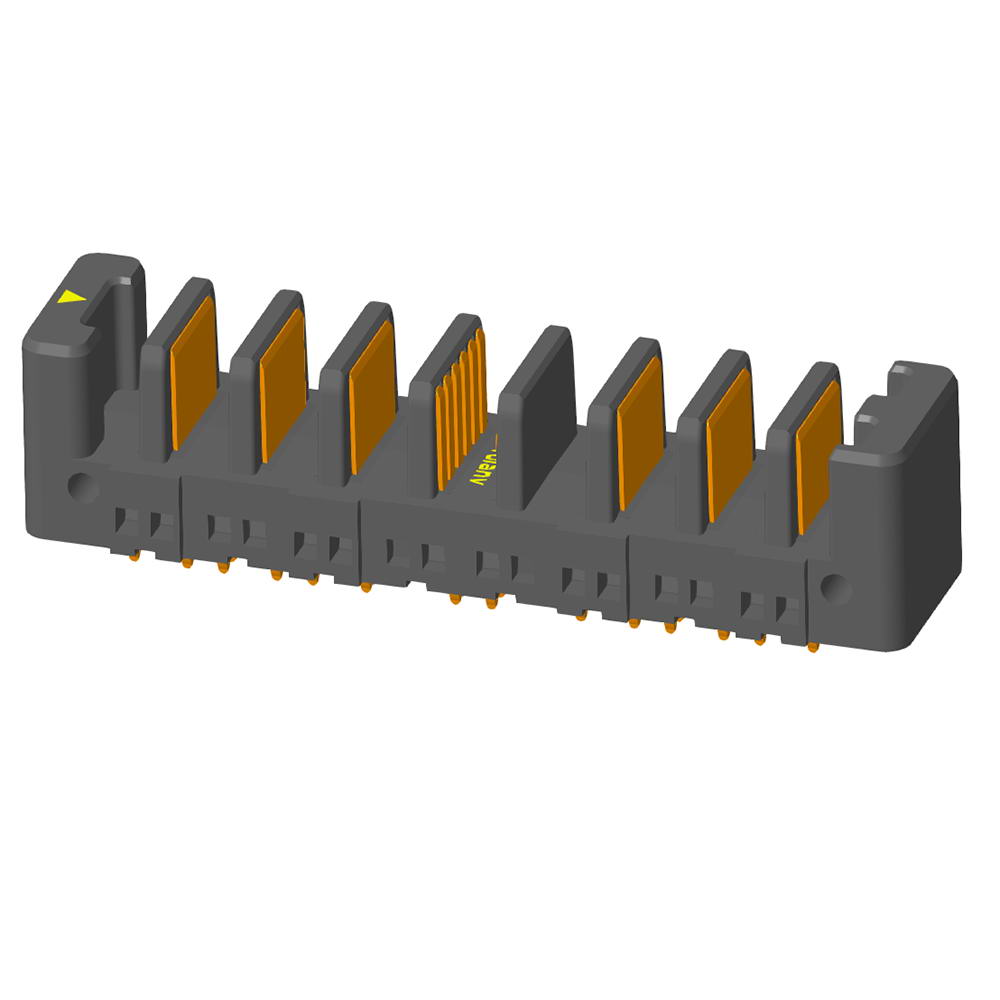

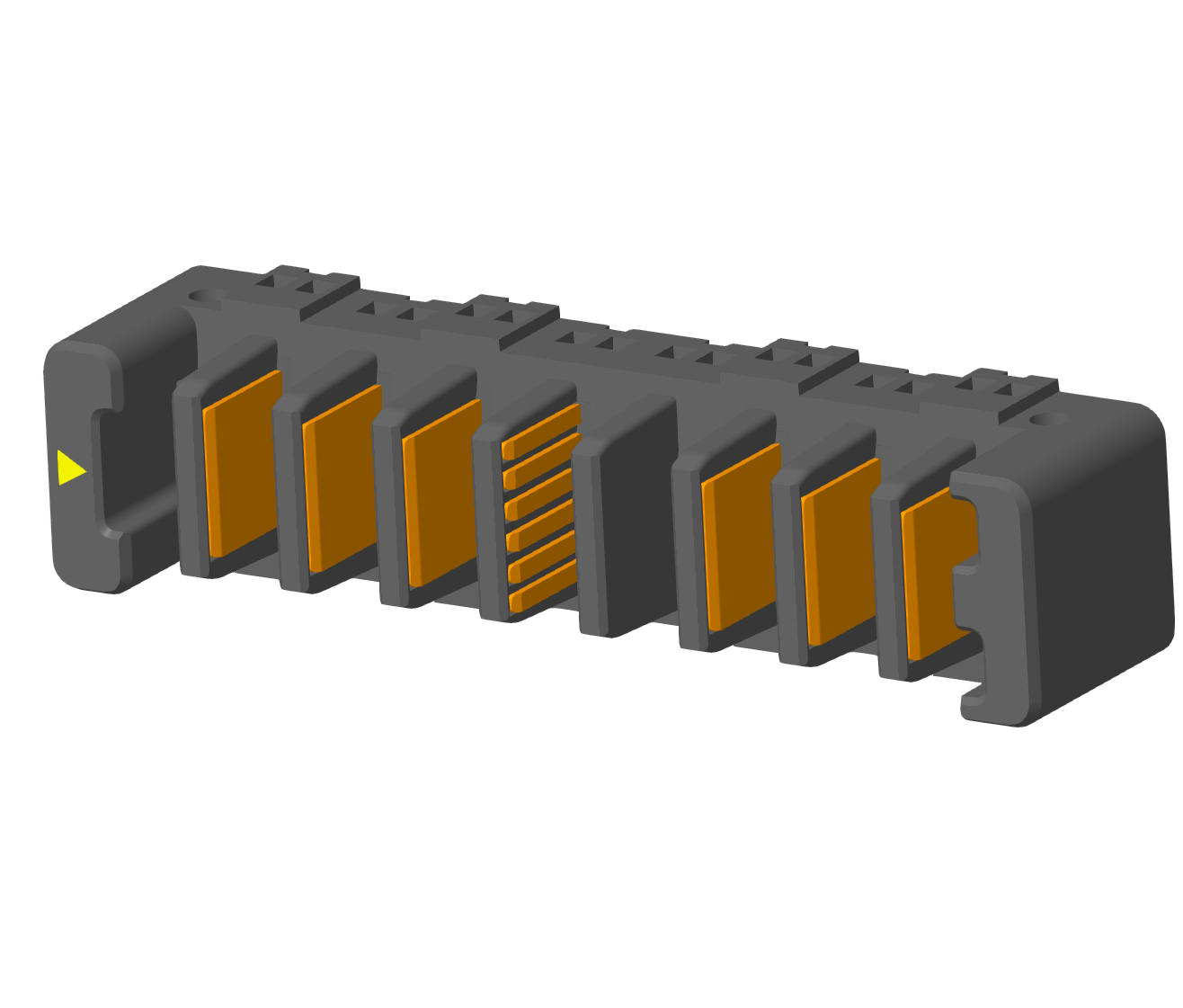

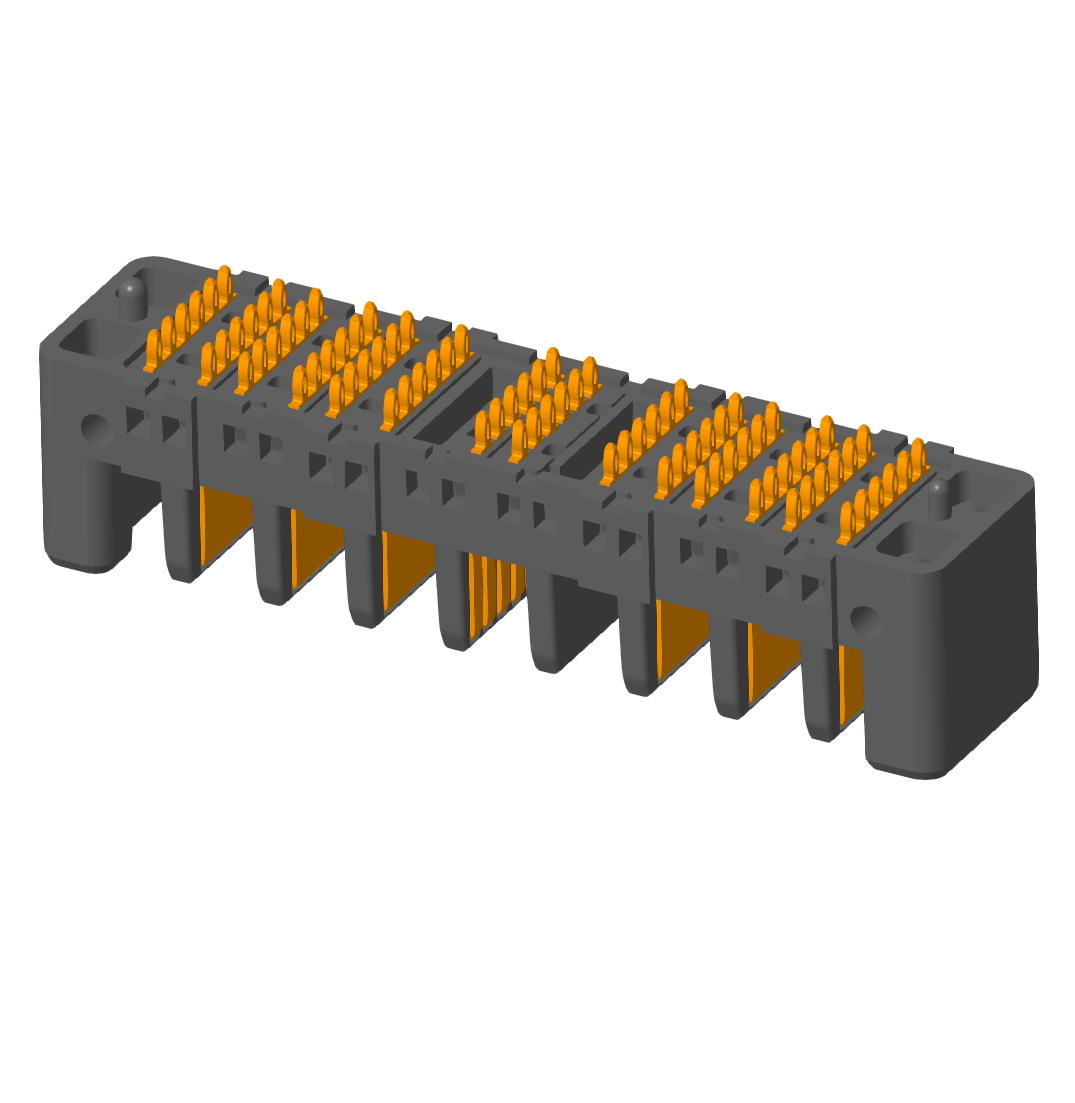

 EX150 Power Male 6PW+12S Water-proof Type | Patent
  EX150 刀片电源公座 6组电源+12信号 防水式 | 专利结构
 电压Voltage rating  600VDC max.
 电流Current rating  150A/Per Power Pair
 接触阻抗Contact resistance  0.5mΩ max. Initial
 耐久Durability Life  5,000 cycles max.
 适用压接工艺Press Fit  Yes
 应用提示 FAE Tips  +3PW/-3PW 450A max.
 工作温度Working Temps  -40°C~125°C.
 应用领域Application Field  IE/UAV/Robot…
