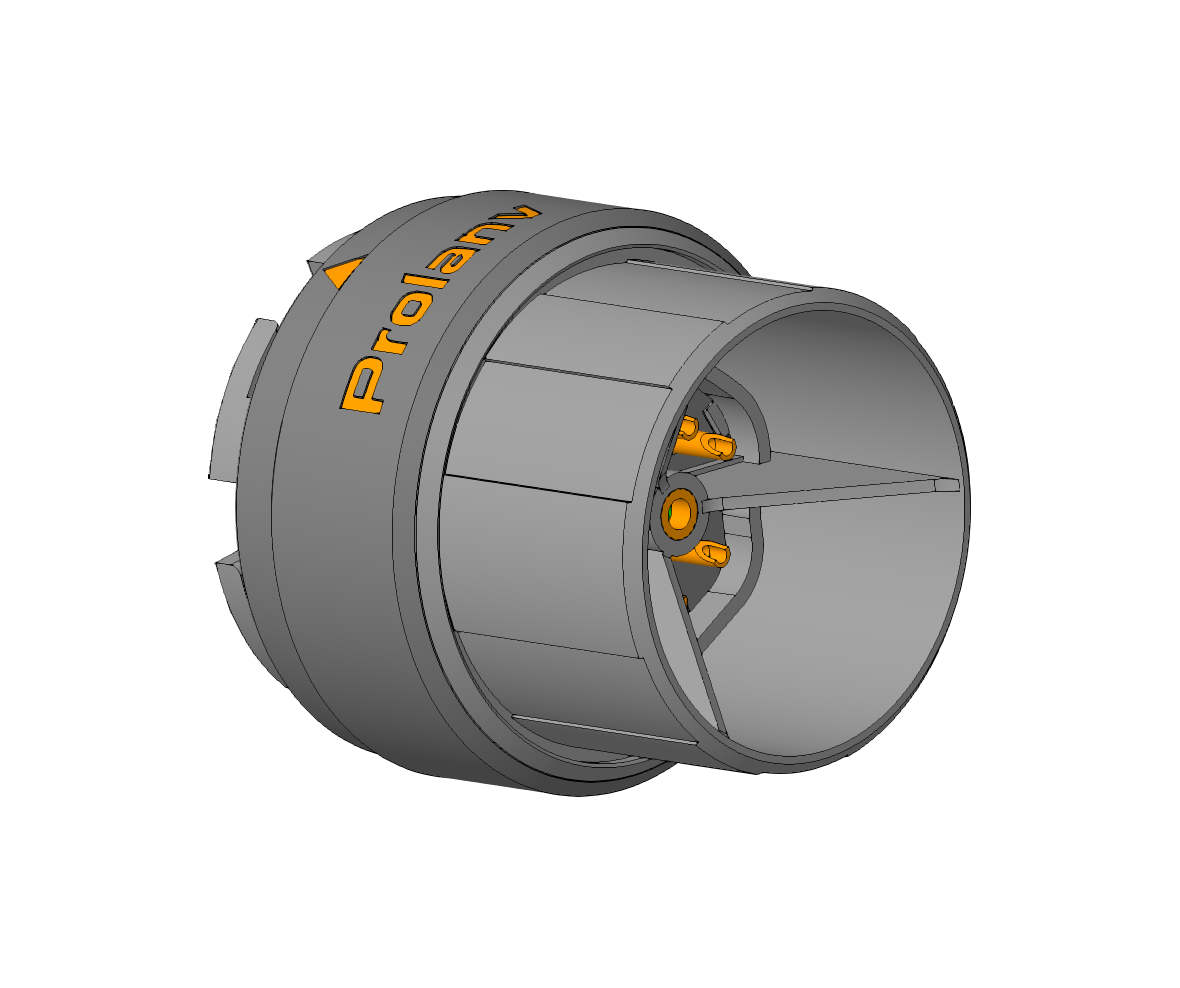

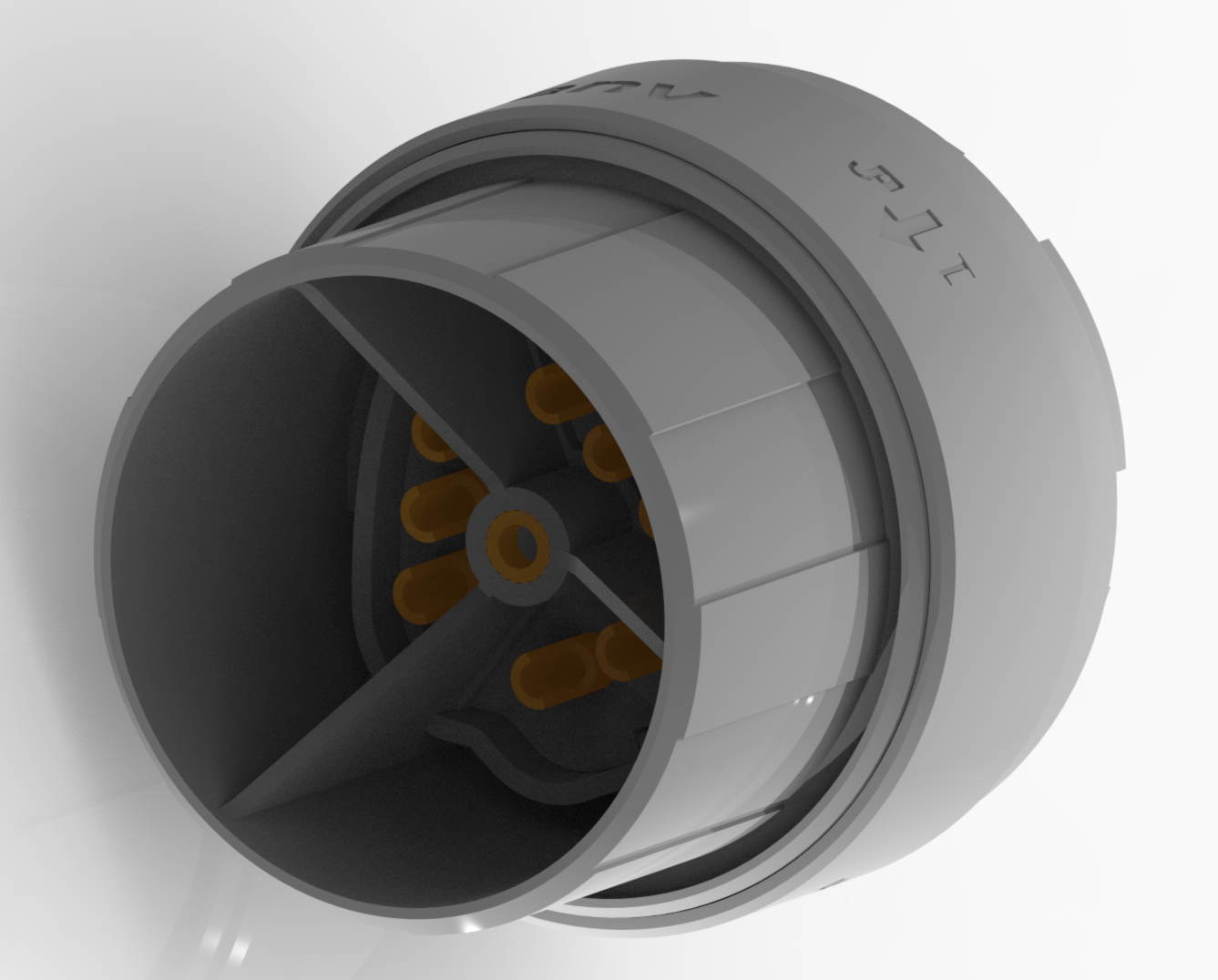

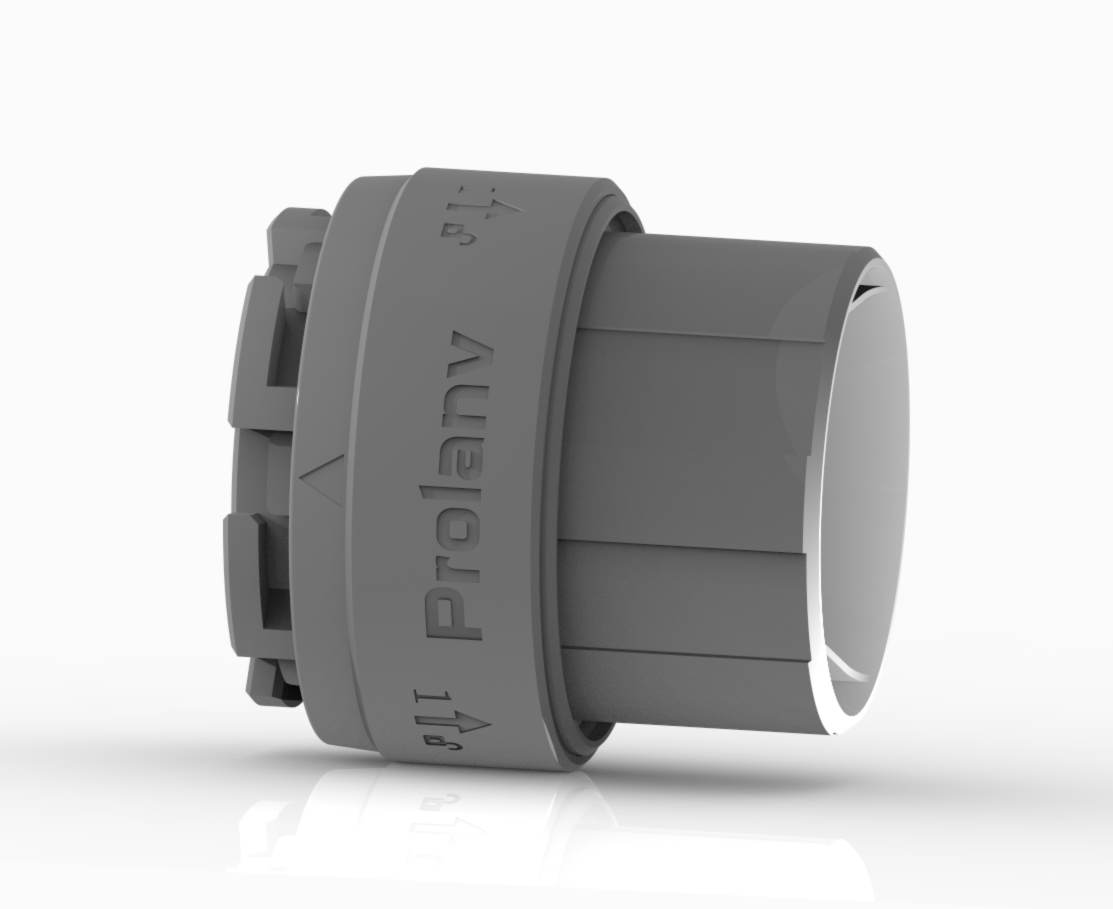

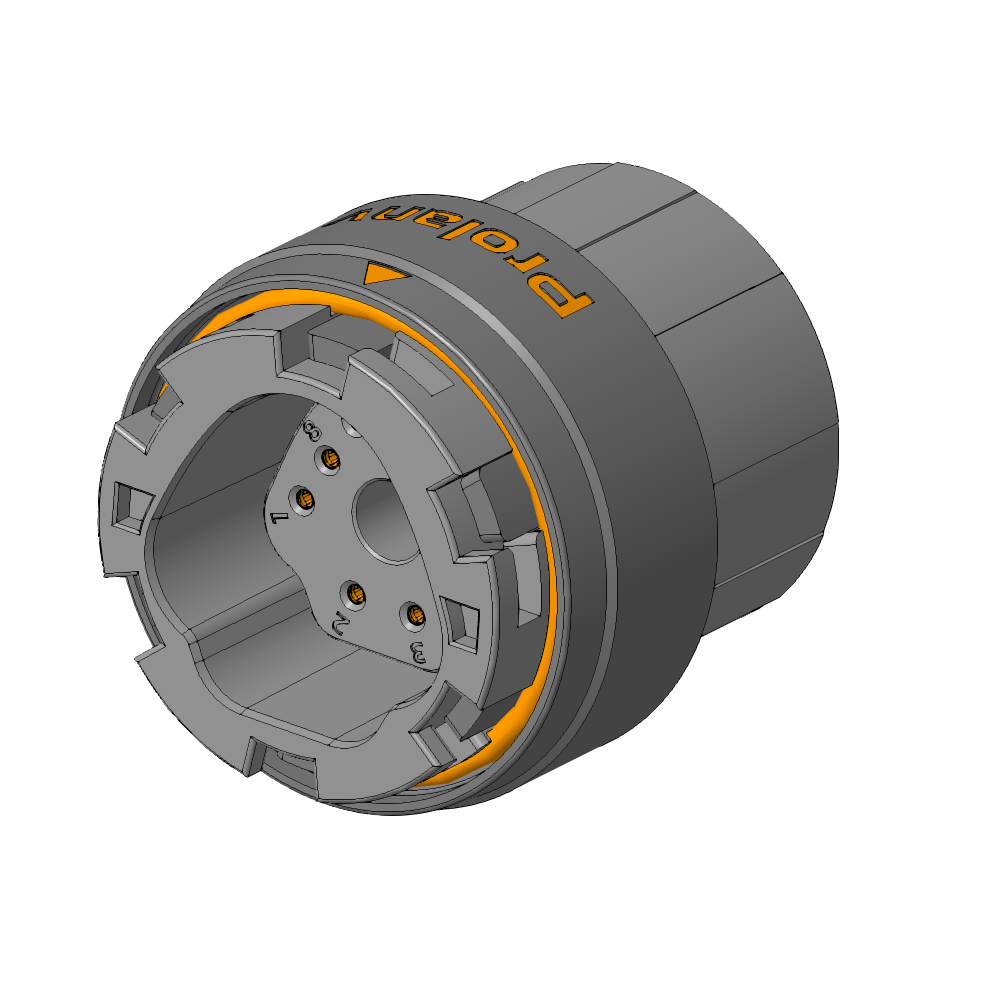

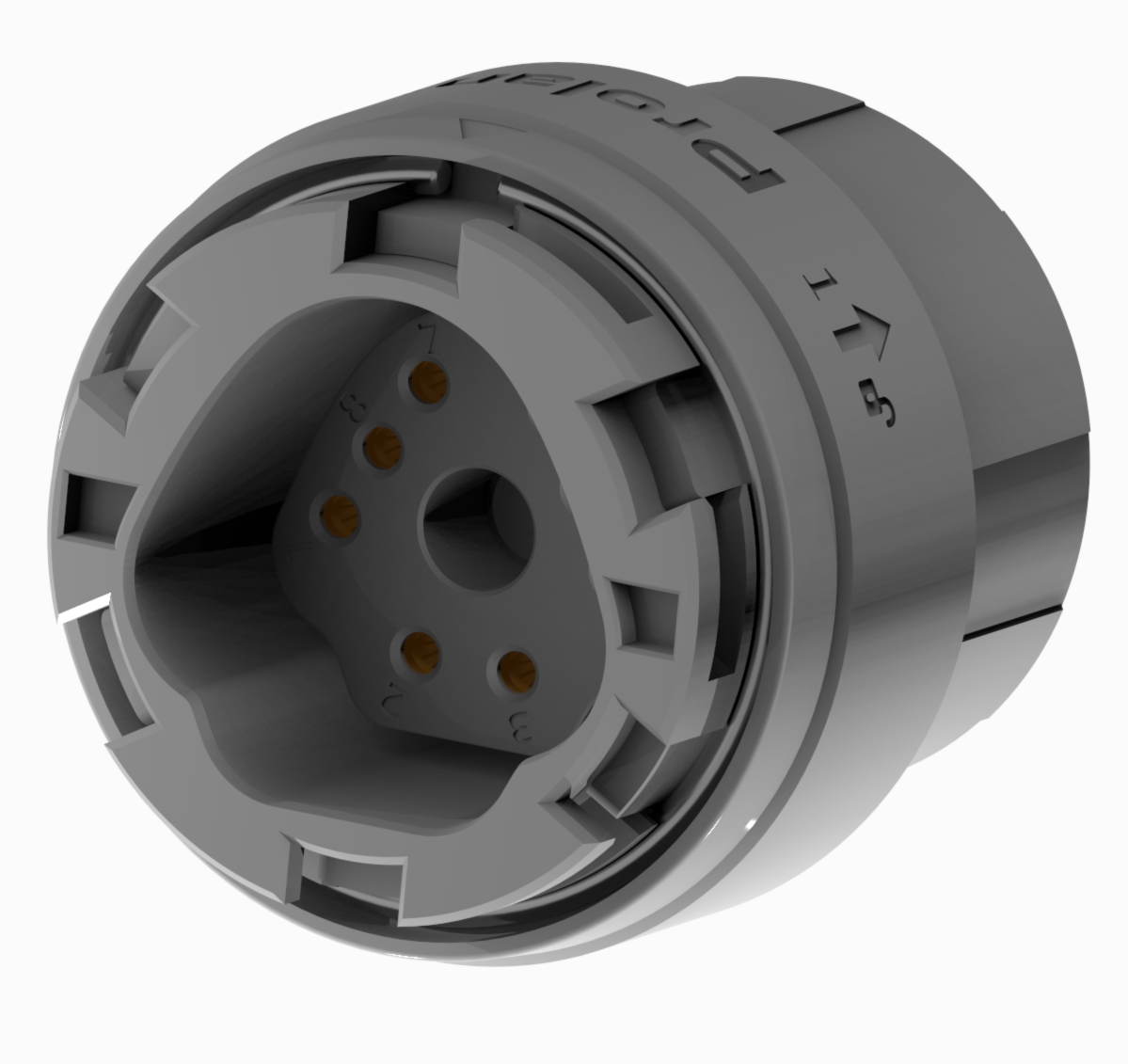

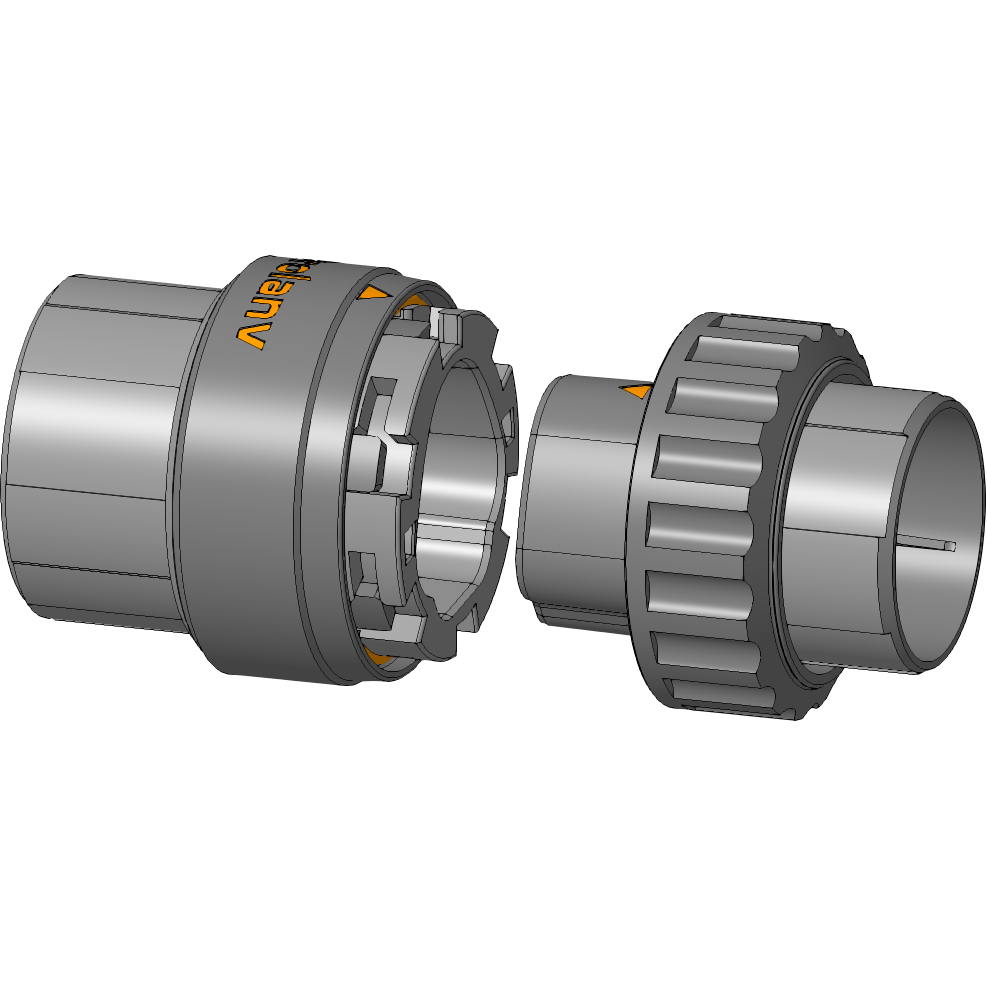

AW40 | Arm Connector Module
Document download

Patented product专利族产品
快拆 | 浮动抗振 | 防水 | 耐久 | 自锁定
Quick Fit | Anti-Vibration | Water-Proof | Auto-locking

1. Material Specification
  1-1. Housing: High Temperature Thermoplastic. UL94 V-0, Black.
  1-2. Contact: High Conductivity Copper Alloy.
  1-3. Screw & Nut: Alloy.
2. Plating Specification: Contact: Gold plating overall.
3. Electrical performance
  3-1. Voltage Rating: 250V DC max.
  3-2. Current Rating: 35A max./Per Pin.
  3-3. LLCR: 1.2mΩ max. at working height.
  3-4. Dielectric Withstanding Voltage:
        1500v DC rms/Power Pin.
  3-5. Insulation Resistance: 5000 MΩ min/Power Pin.
4. Mechanical Performance:
  4-1. Insertion force: 78.4N (8.0kgf) (max).
  4-2. Withdrawal force: 19.6N~63.7N (2.0~6.5 kgf).
  4-3. Durability life: 5,000 cycles.
5. Waterproof grade:  IPX5
6. Operating Temperature Range: -40~125°c.
7. All parts RoHS and Reach compliant.
8. See SPS-PAW-01 for assembly sequence with device.
