AT80 | Needle Power Conn
Document download
Description

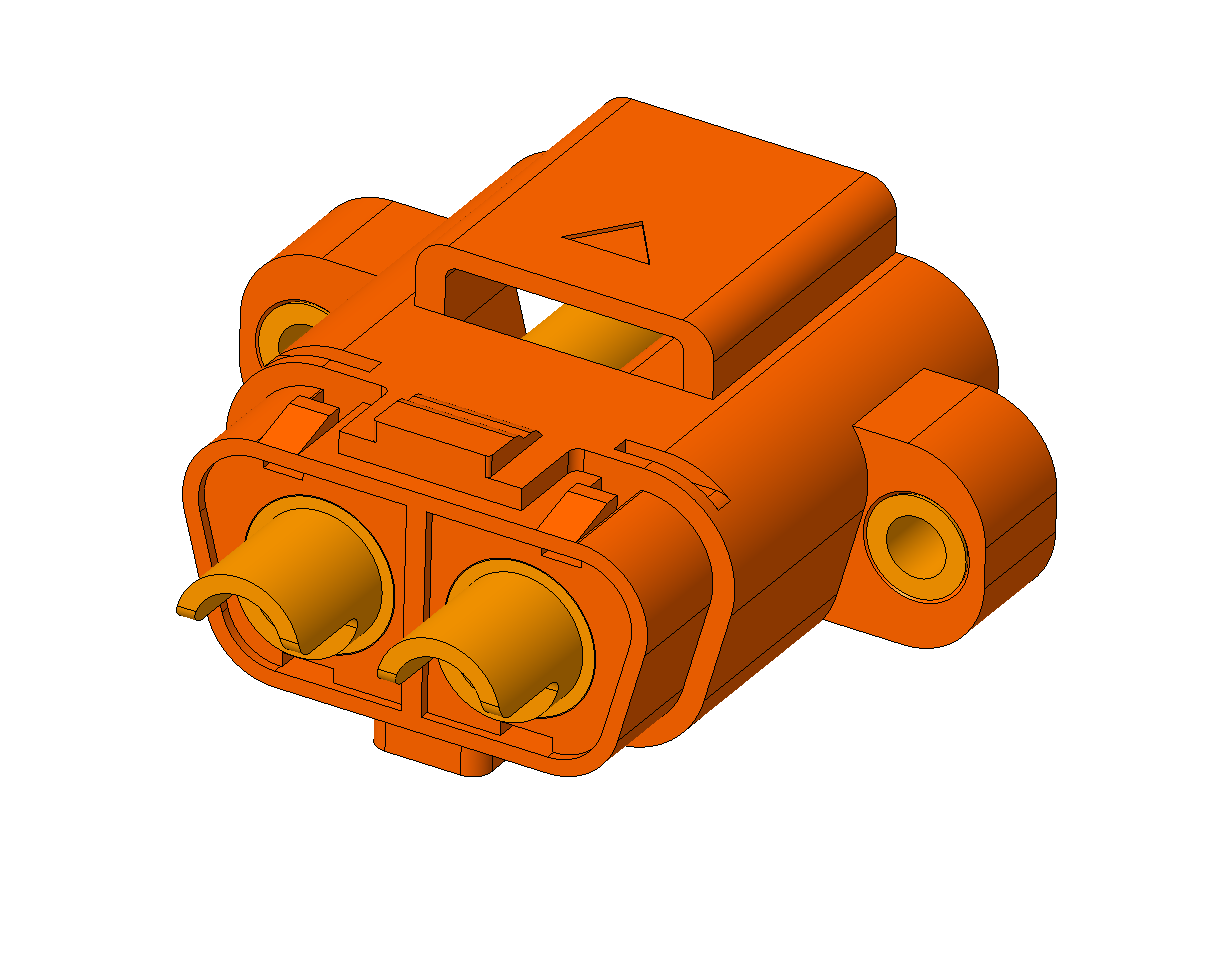

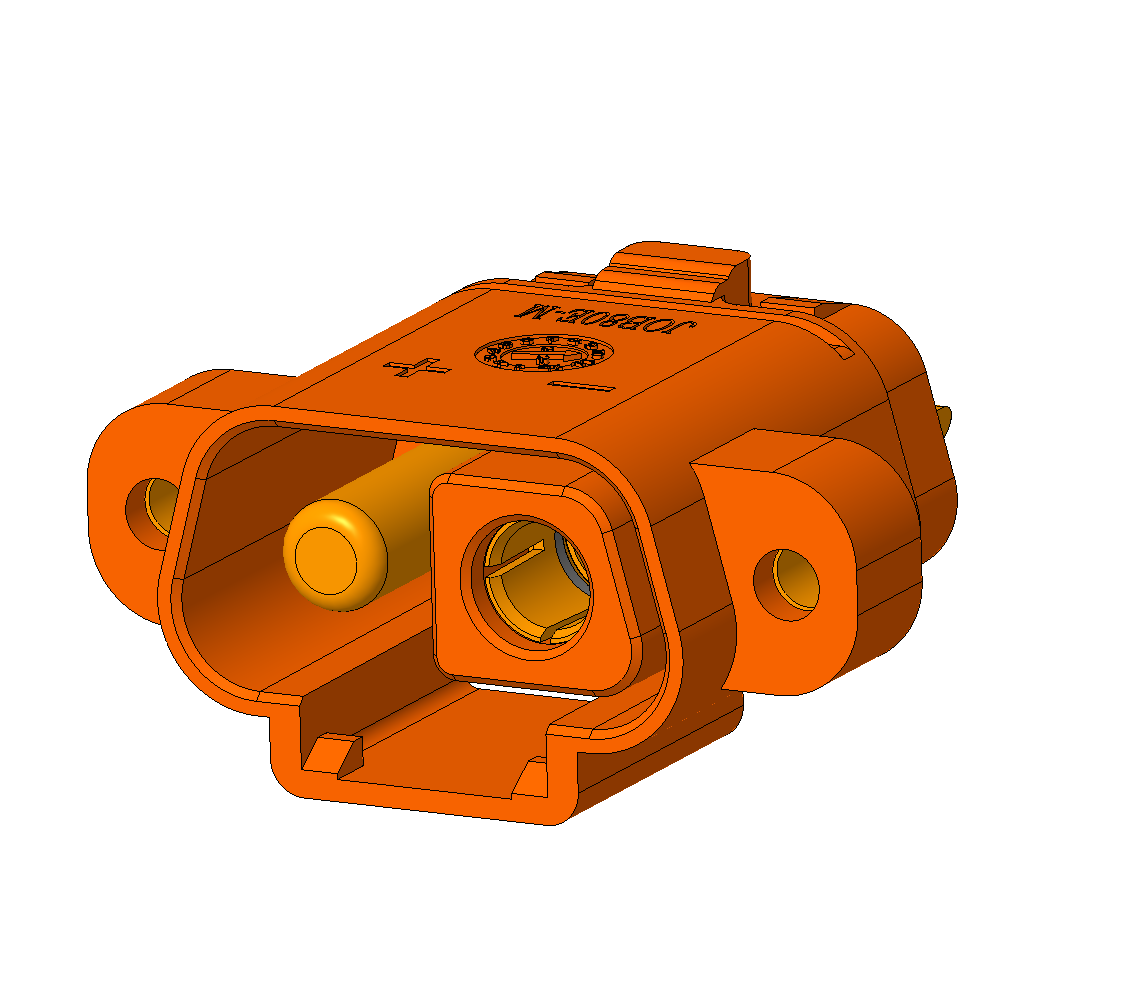

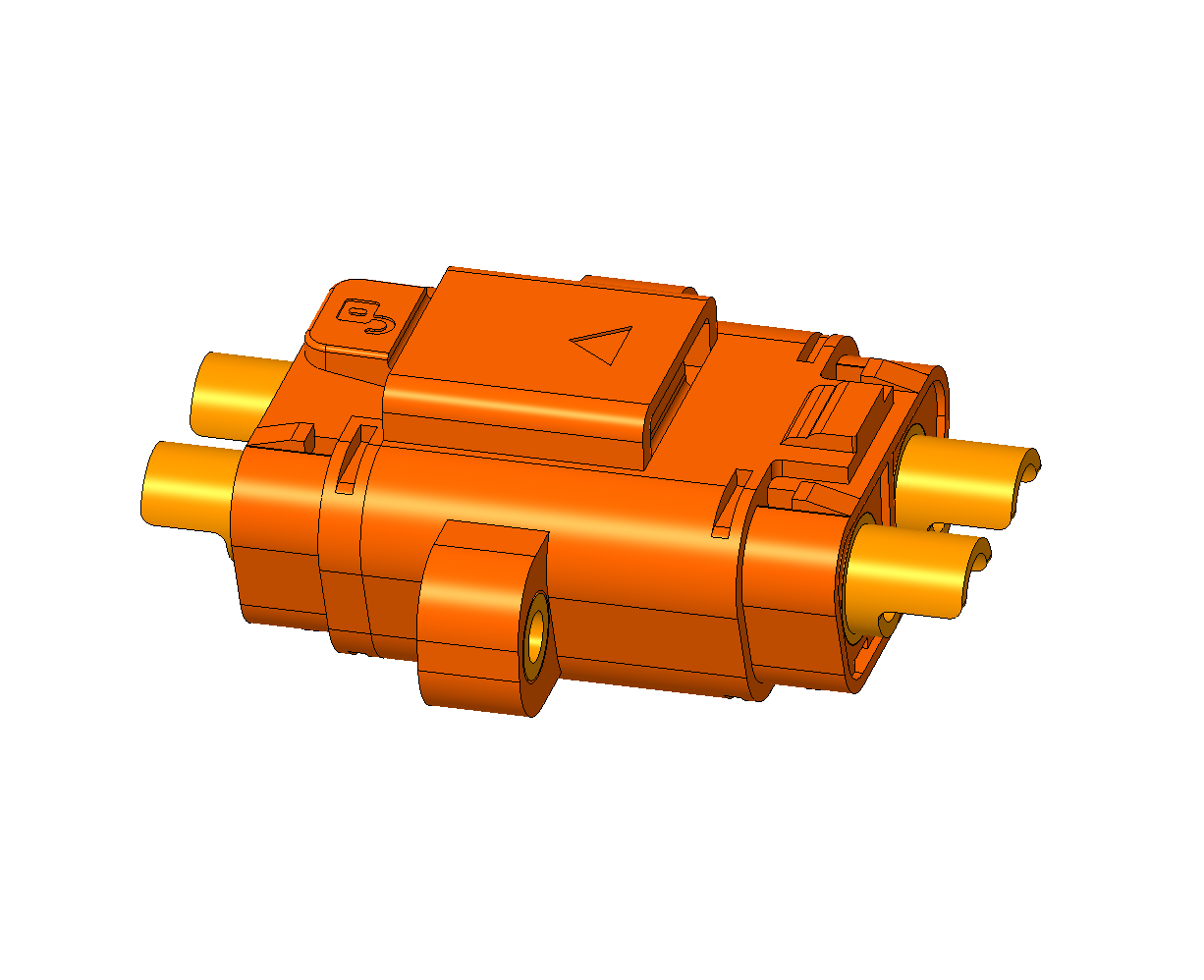

AT80 Power Conn. 2PW | Inhibit inrush current | Patent
AT80针式大电流连接器 2组电源 | 抑制涌流 | 专利结构
 电压Voltage rating 200VDC max.
 电流Current rating 80A/Per Pin
 接触阻抗Contact resistance  0.8mΩ max. Initial
 耐久Durability Life  2,000 cycles
 应用提示 FAE Tips  8AWG max W/Cover
 工作温度Working Temps  -25°C~125°C.
 应用领域Application Field  IE/UAV/Robot…
