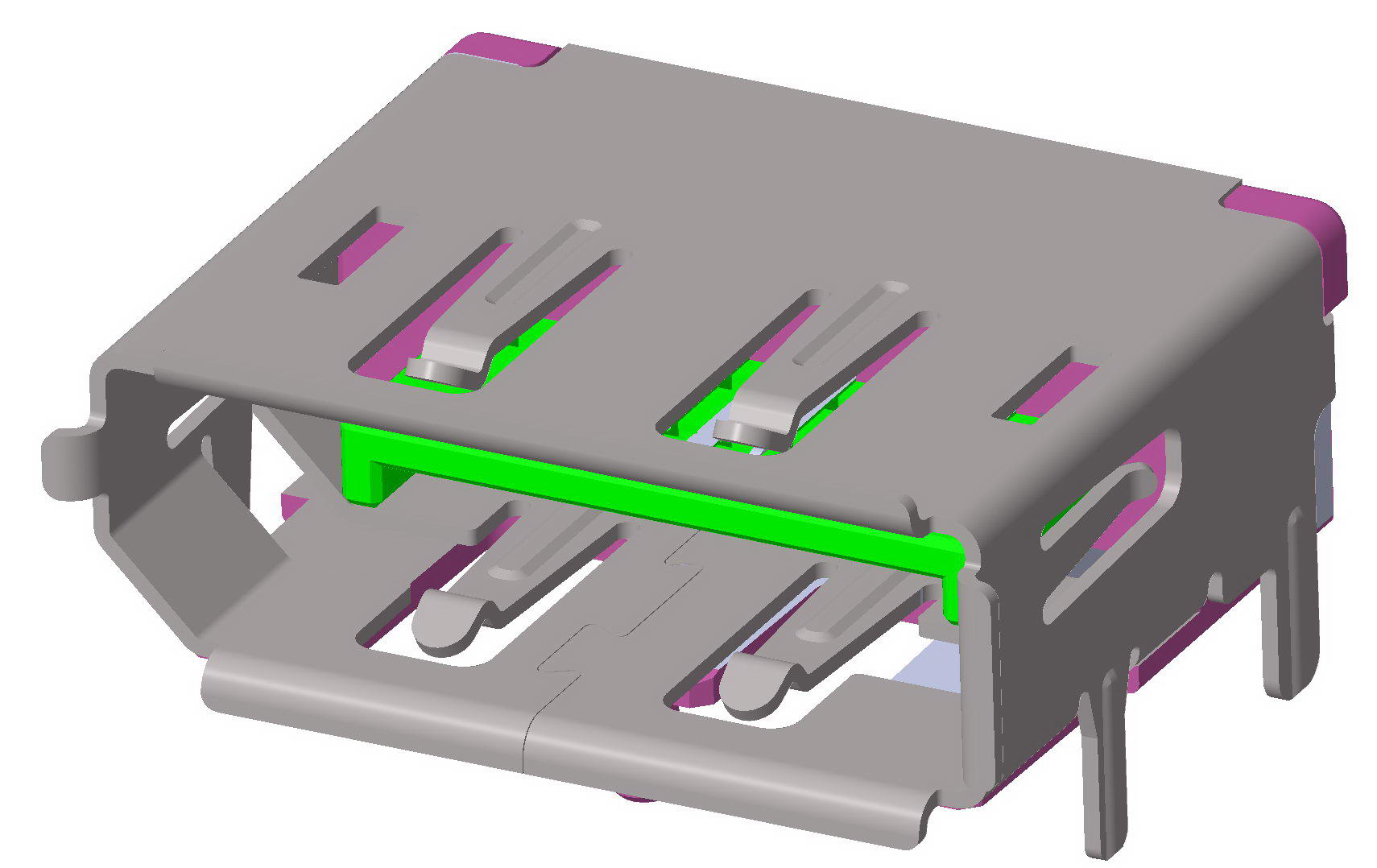

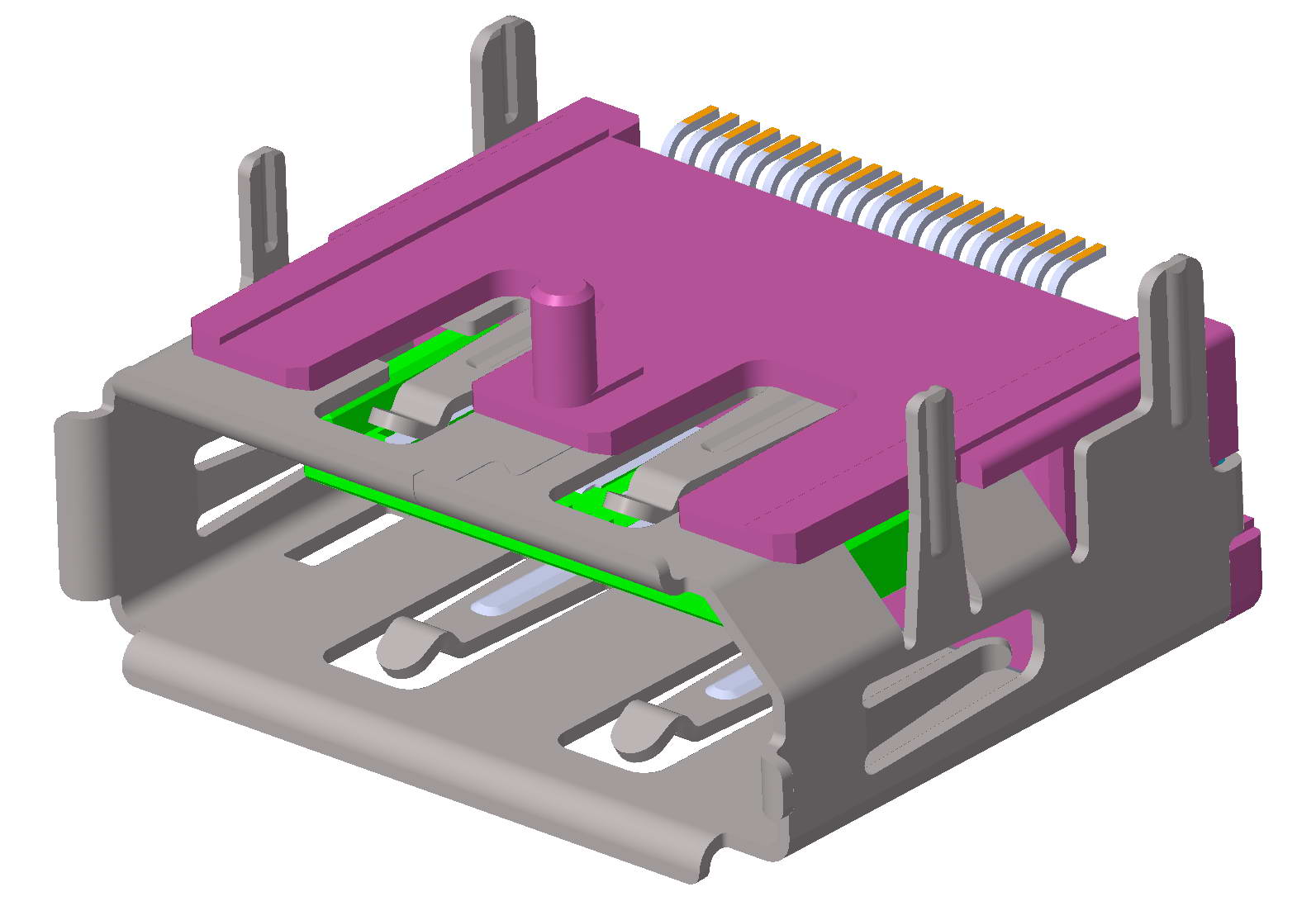

CE I/O Connectors
Document download
Description
Notes:
1.Material Specification:
 1-1.Housing: LCP+30% G.F UL94 V-0.
 1-2.Contact: Copper Alloy C2680 T=0.20mm.
 1-3.Shell: Stainless Steel (SUS304) T=0.40mm.
2.Plating Specification:
 2-1.Contact: see P/N.
 2-2.Shell: Nickel Plated.
3.Mechanical Performance:
 3-1.Insertion force: 44.1N (4.5kgf) max.
 3-2.Withdrawal force: 4.9N~25N (0.5~2.5kgf).
 3-3.Durability: 10,000 cycles.
4.Electrical Performance:
 4-1.Current Rating: 0.5A.
 4-2.LLCR: Contact: 30 mΩ max.(initial), Shell: 50 mΩ max.(initial).
 4-3.Insulation Resistance:
    Unmated:100 MΩ min. at 500V DC, Mated:10 MΩ min. at 150V DC.
 4-4.Dielectric withstand voltage:
    150V AC/60s (mated), 250V AC/60s(unmated).
5.IR Reflow:
 The peak temperature on board shall be maintained for 10 seconds at 260±5°C.
6.Operating temperature range: -35°C~105°C(without loss function).
7.RoHS and Reach compiant.
